Tire Monitoring System
Tire Monitoring System

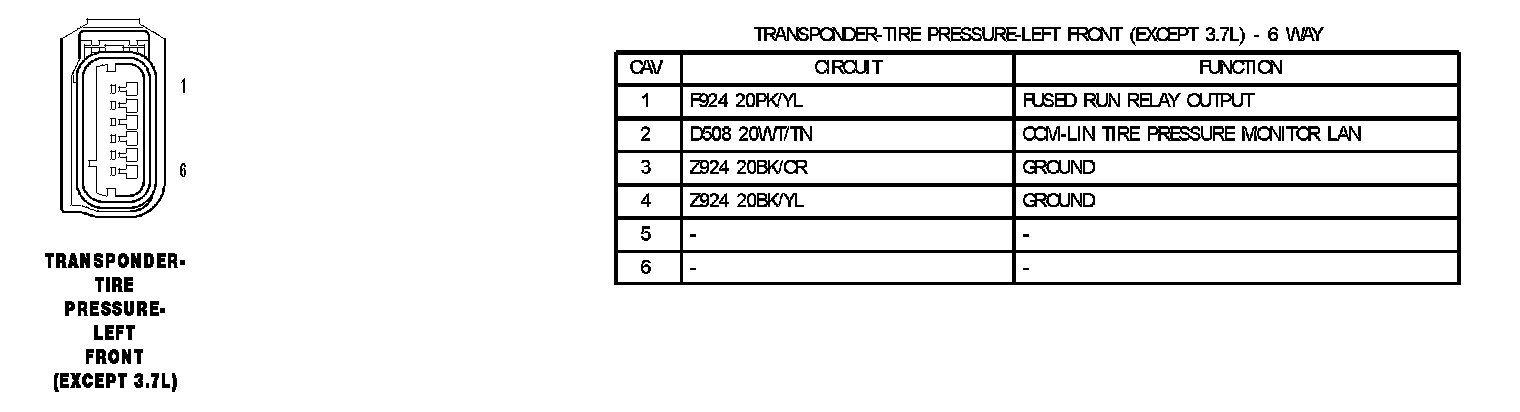

Transponder Tire Pressure Left Front (Except 3.7L):

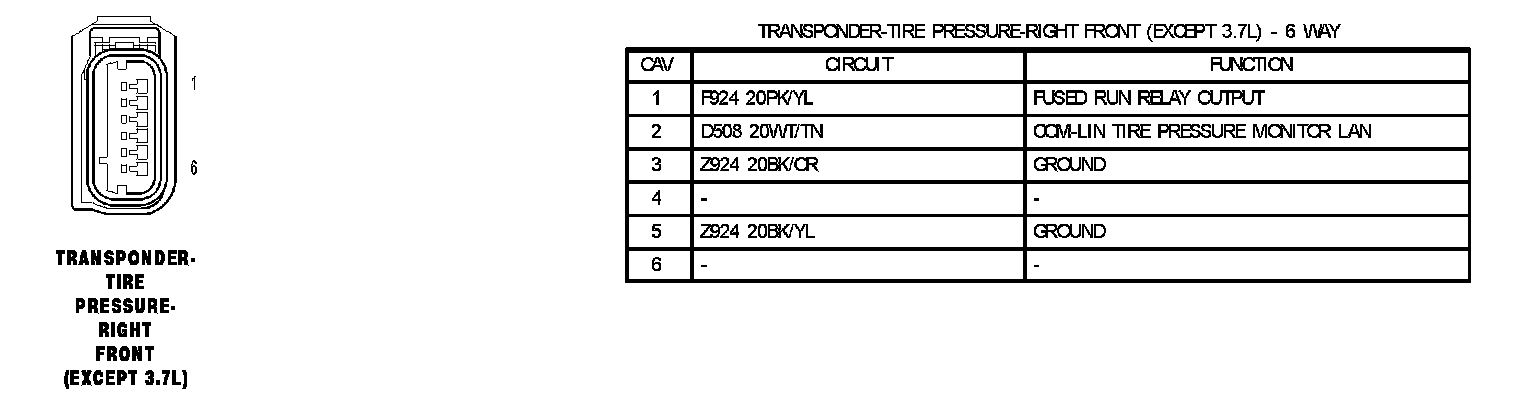

Transponder Tire Pressure Right Front (Except 3.7L):

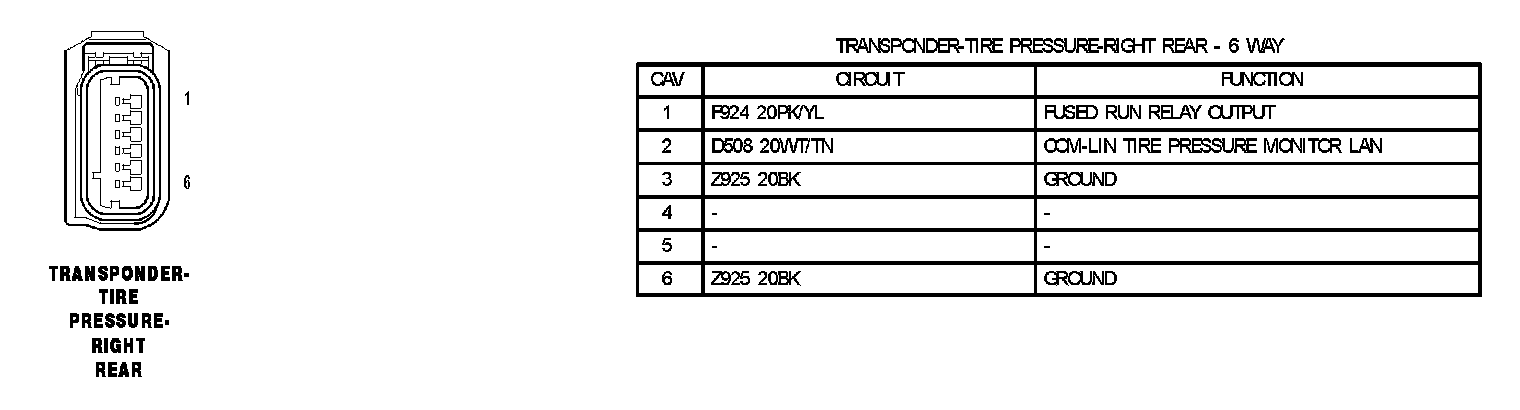

Transponder Tire Pressure Right Rear:
