Connector Locations

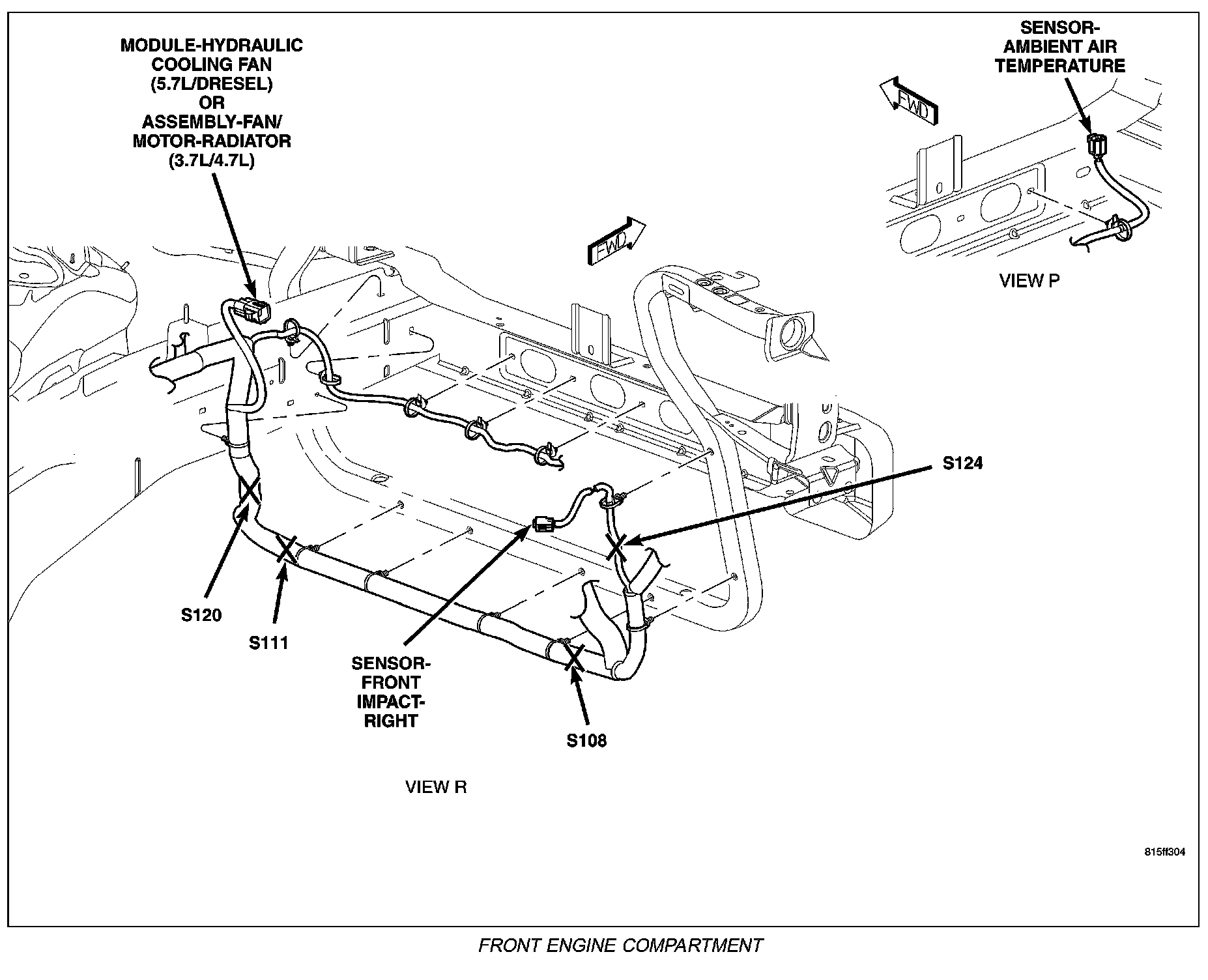

Front Engine Compartment:

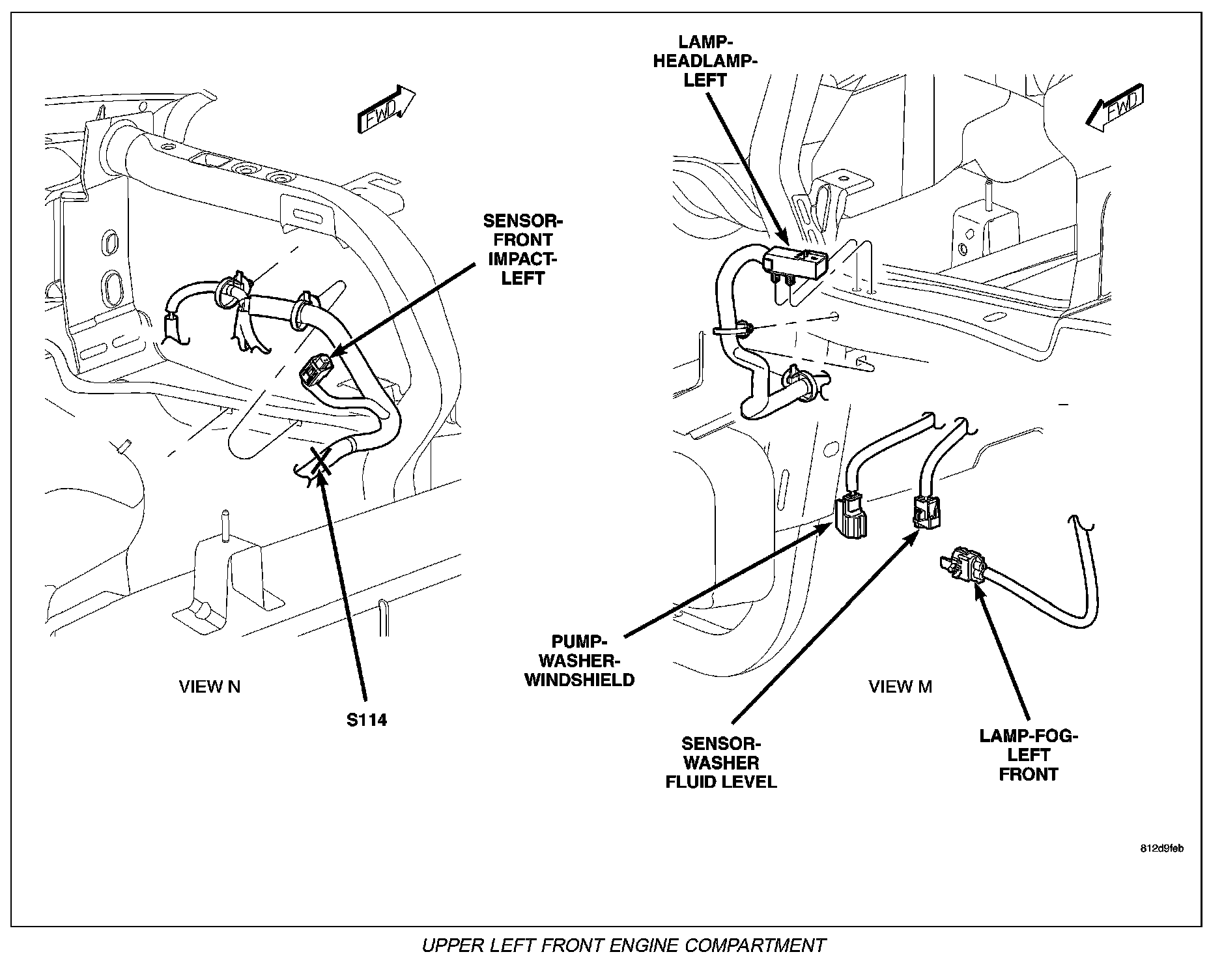

Upper Left Front Engine Compartment:

Right Side Body:

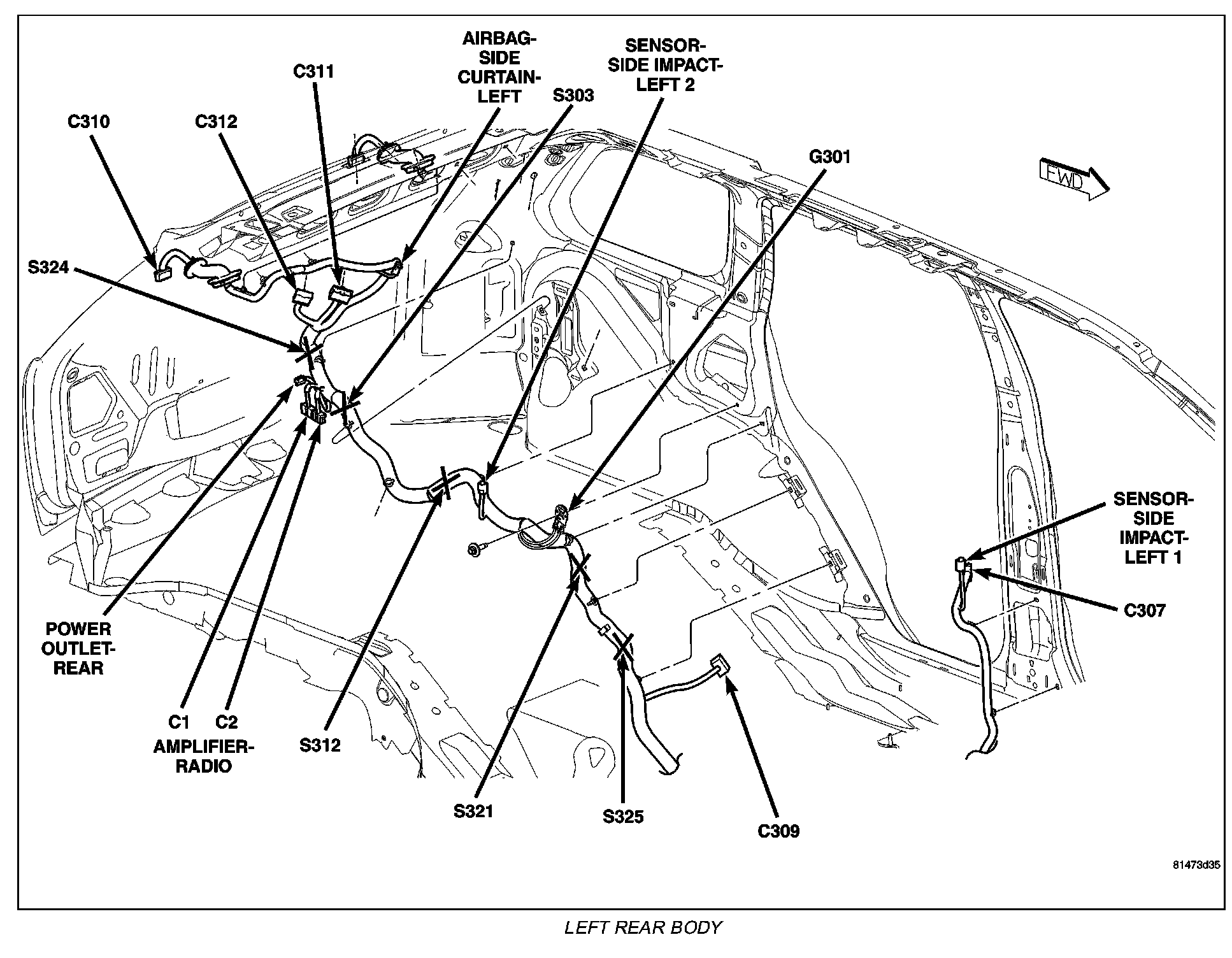

Left Rear Body:

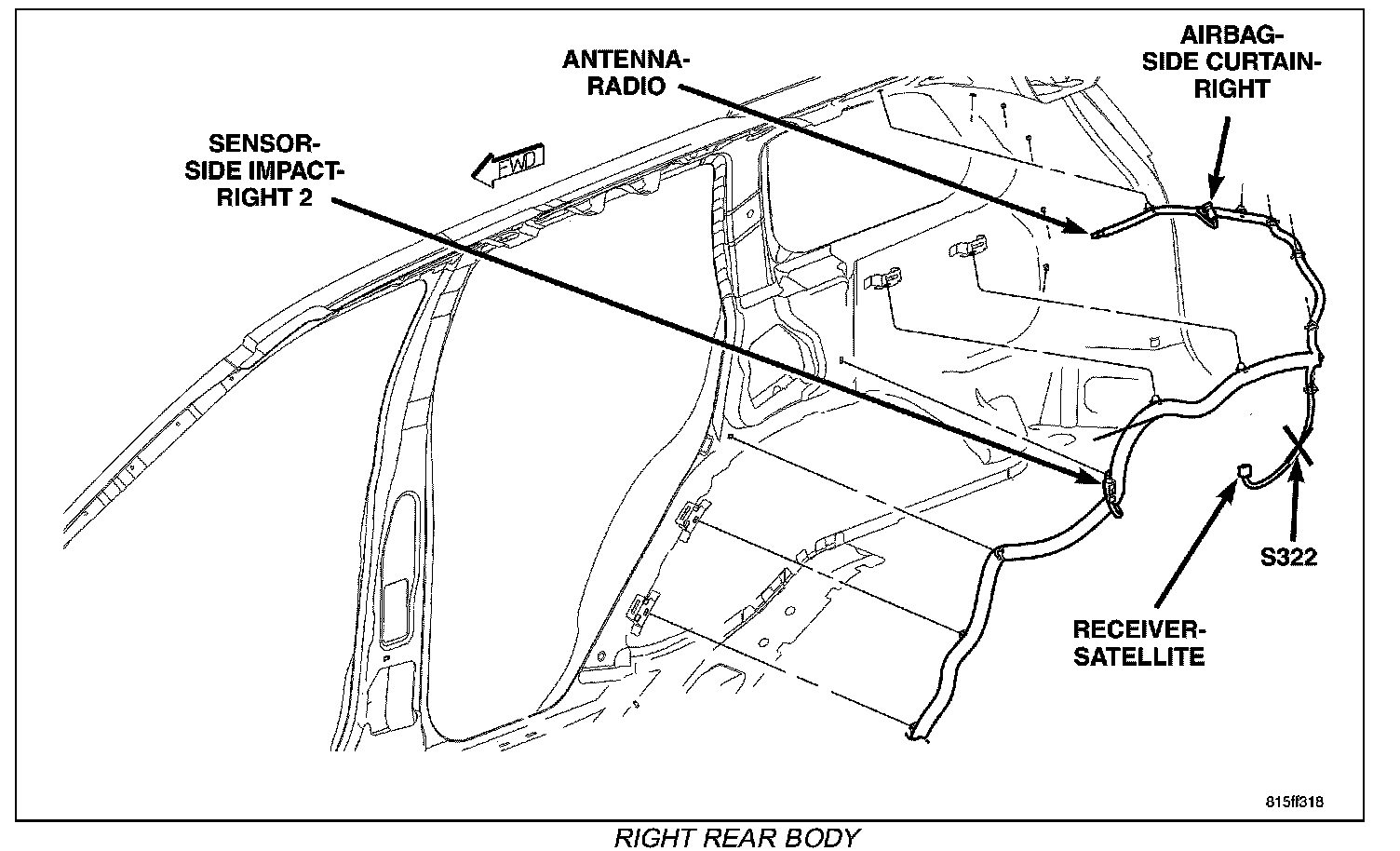

Right Rear Body:
