Grand Cherokee 4WD V8-5.7L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
Power Seat Switch

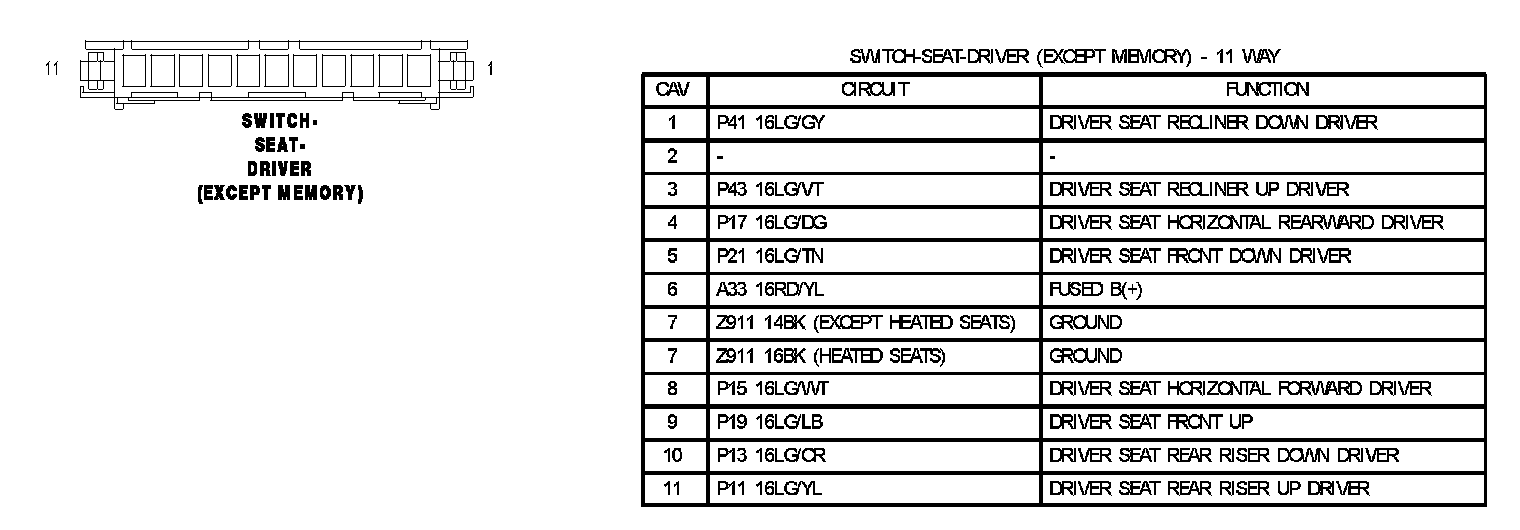

Switch Seat Driver (Except Memory):

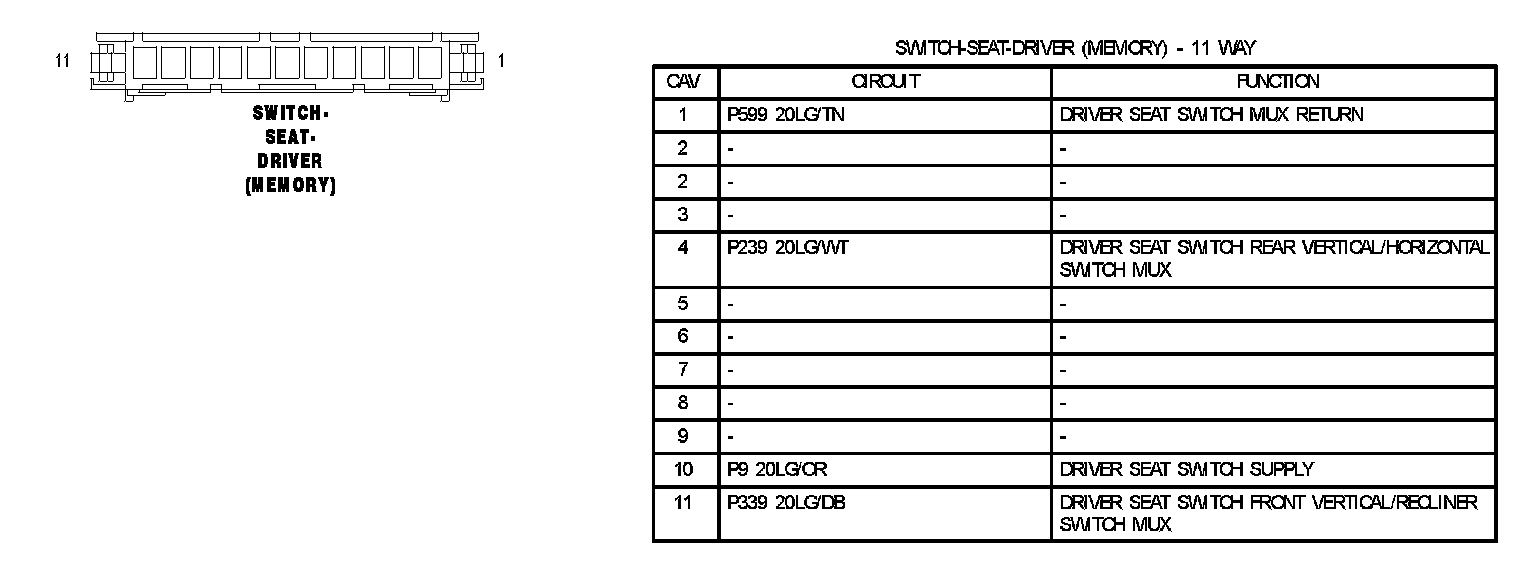

Switch Seat Driver (Memory):

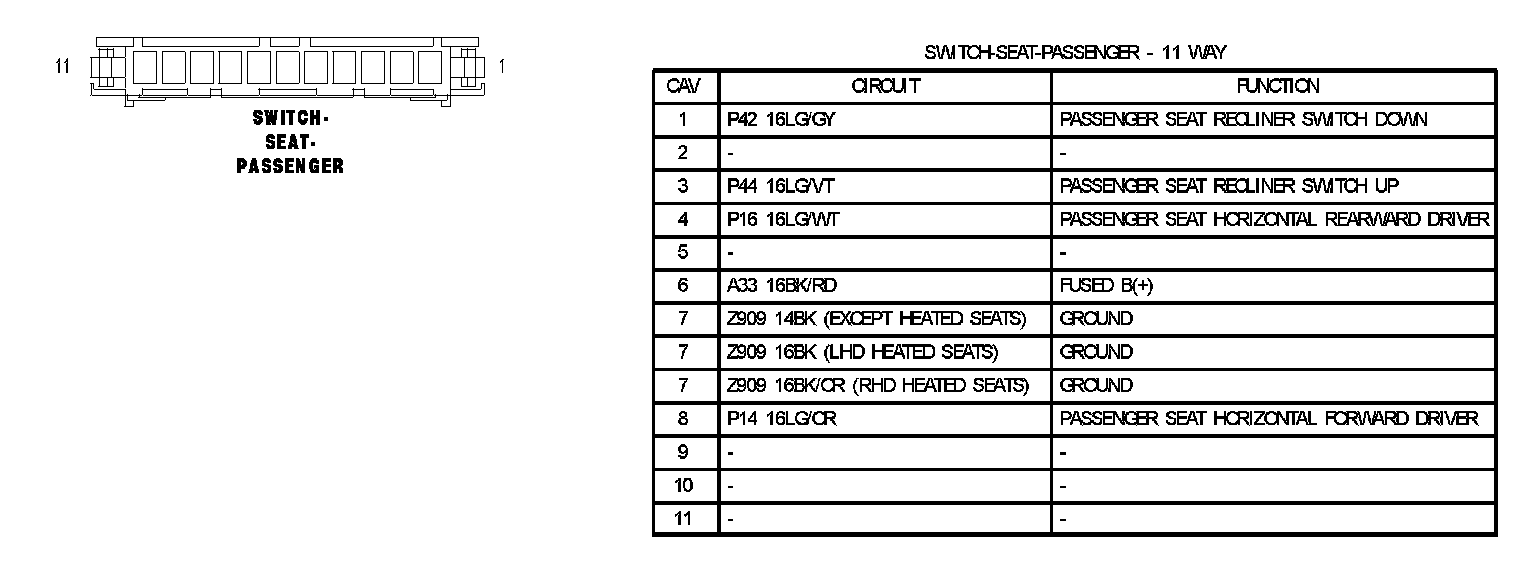

Switch Seat Passenger:
