Parking Assist Control Module: Service and Repair

REMOVAL




1. Disconnect and isolate the battery negative cable.

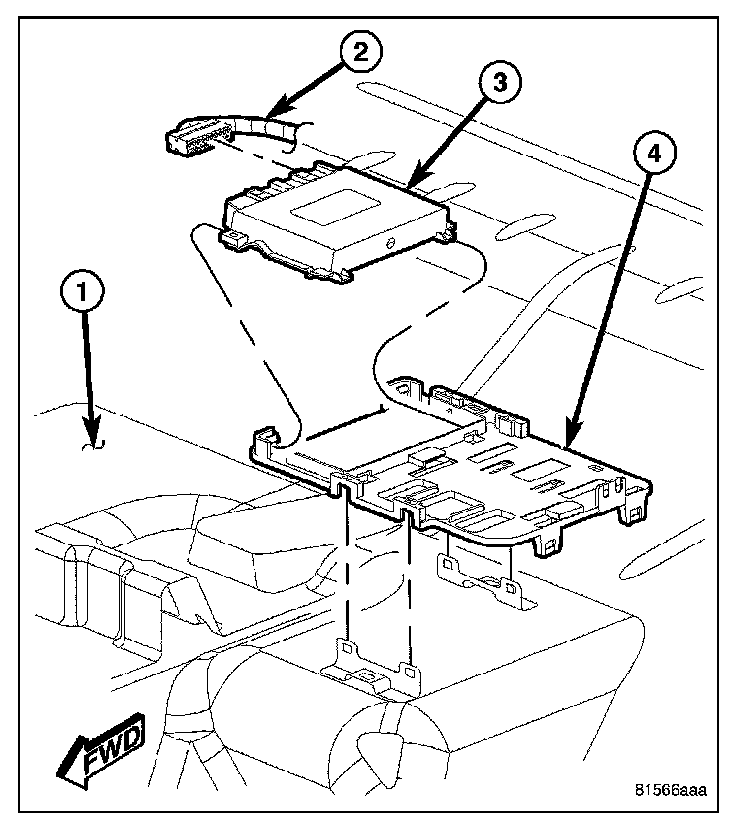

2. Remove the rear seat cushion from the rear floor panel (1).
3. Disconnect the underbody wire harness connector
2. from the park assist module (3) connector receptacle.
4. Using a trim stick or another suitable wide flatbladed tool, gently pry the two latch features on the inboard side of the mounting plate (4) away from the mounting tabs of the module far enough to disengage the inboard (connector) side of the module.
5. Pull the module inboard far enough to disengage the two mounting tabs on the outboard side of the module from the slots in the mounting plate.
6. Remove the module from the mounting plate.

INSTALLATION




1. Position the park assist module (3) to the mounting plate (4) and insert the two mounting tabs on the outboard side of the module into the slots in the plate.
2. Slide the module toward the outboard side of the mounting plate, then push downward on the module until the two latch features integral to the inboard side of the plate are fully engaged over the mounting tabs on the inboard (connector) side of the module.
3. Reconnect the underbody wire harness connector
2. to the module connector receptacle.
4. Reinstall the rear seat cushion onto the rear floor panel (1).
5. Reconnect the battery negative cable.
