Blower Motor Relay: Service and Repair

RELAY-BLOWER MOTOR

NOTE: LHD model shown in illustration. RHD models similar.

REMOVAL




1. Disconnect and isolate the negative battery cable.

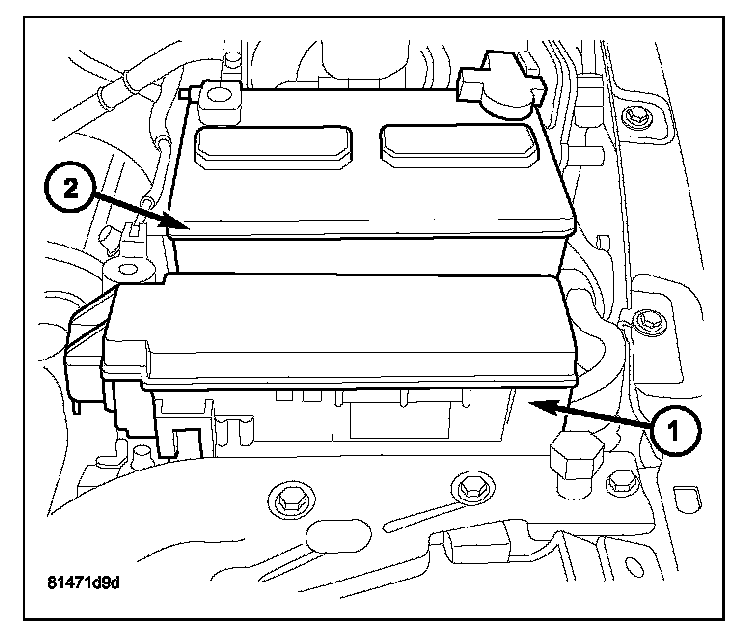

2. Open the cover of the power distribution center (PDC) (1) located near the battery (2) in the engine compartment.

NOTE: Refer to the fuse and relay layout map on the PDC cover for blower motor relay location.

3. Remove the blower motor relay from the PDC.

INSTALLATION

NOTE: Refer to the fuse and relay map on the cover of the power distribution center (PDC) for blower motor relay location.

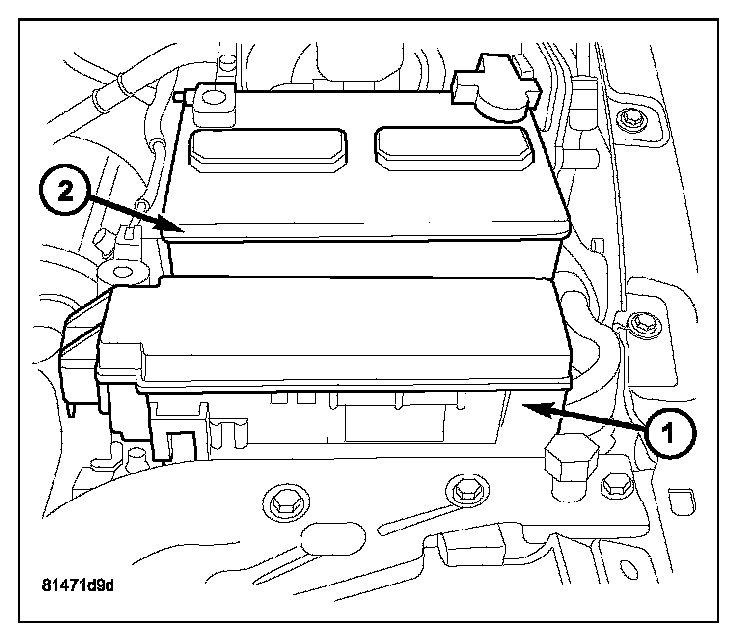

1. Position the blower motor relay into the proper receptacle of the PDC (1) located near the battery (2) in the engine compartment.
2. Align the blower motor relay terminals with the terminal cavities in the PDC receptacle and push down firmly on the relay until the terminals are fully seated.
3. Close the cover of the PDC.
4. Reconnect the negative battery cable.
