Sunroof / Moonroof Module: Service and Repair

MODULE/FRAME ASSEMBLY

REMOVAL




1. Move glass panel to fully closed position.
2. Disconnect and isolate negative battery cable.
3. Remove sunroof opening trim lace.
4. Remove control switch.
5. Remove headliner.

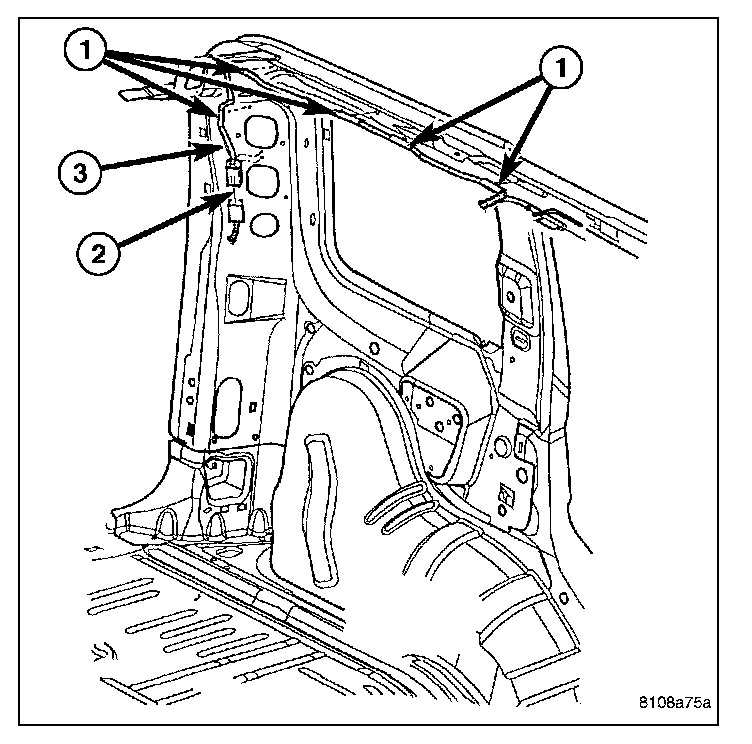

6. Disconnect wire harness push in fasteners (1) and electrical connector (2) from vehicle harness (3).
7. Disconnect drain tubes from sunroof housing.
8. Cut foam support pad at rear of module if necessary.

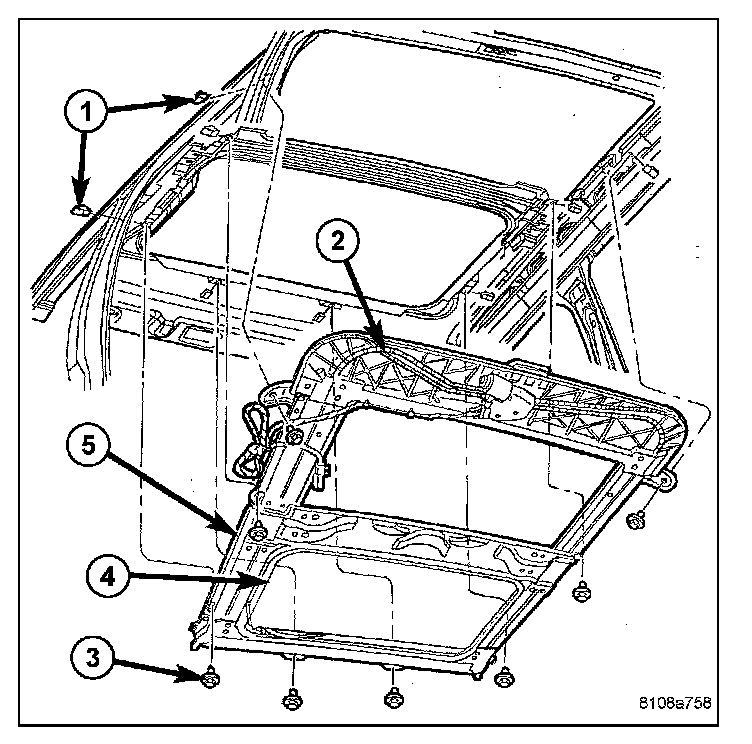

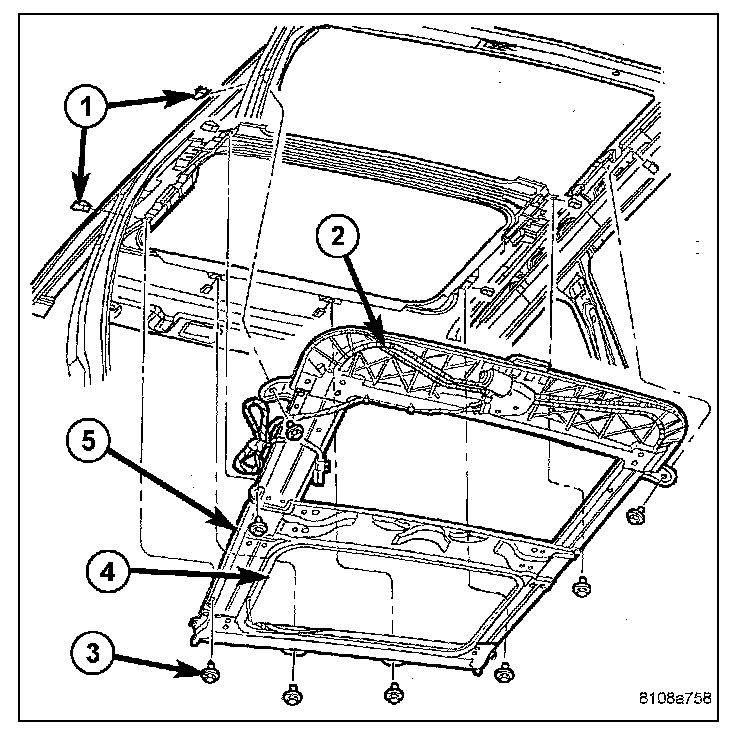

9. Remove two module bracket bolts and loosen the remaining fasteners.
10. With the aid of a helper, remove fasteners attaching sunroof module assembly to roof panel.
11. Remove the sunshade.
12. Remove the drive motor.
13. Remove the wire harness.
14. Remove the trough guides.

INSTALLATION




1. Install the trough guides.
2. Install the drive motor.
3. Install the sunshade.
4. Remove the backing tape from the foam support pad, if necessary.
5. Raise rear end of sunroof module assembly and guide into position and start fasteners.
6. Tighten the fasteners to 9 N.m (80 in. lbs.).
7. Connect the drain tubes.




8. Install the wire harness.
9. Connect battery negative cable.
10. Temporarily install sunroof switch and perform the sunroof motor teach procedure.
11. Test sunroof operation, adjust glass as necessary.
12. Install the headliner.
13. Install the opening trim lace.
