WINDOW REGULATOR - MANUAL

REMOVAL




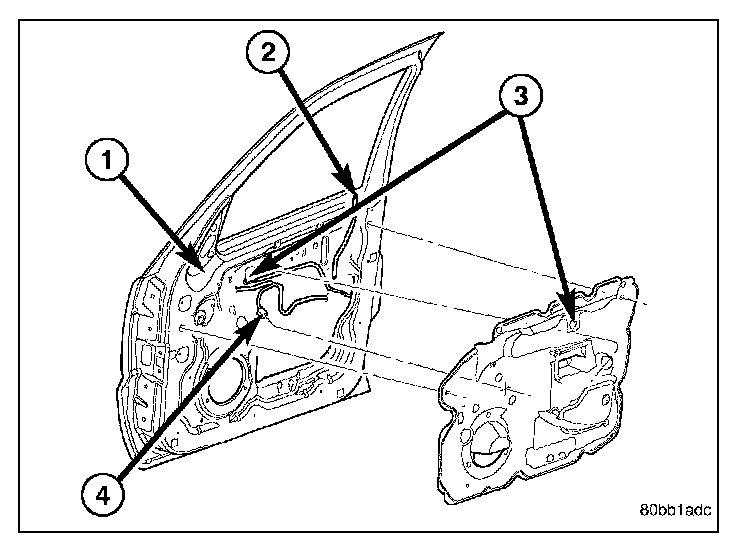

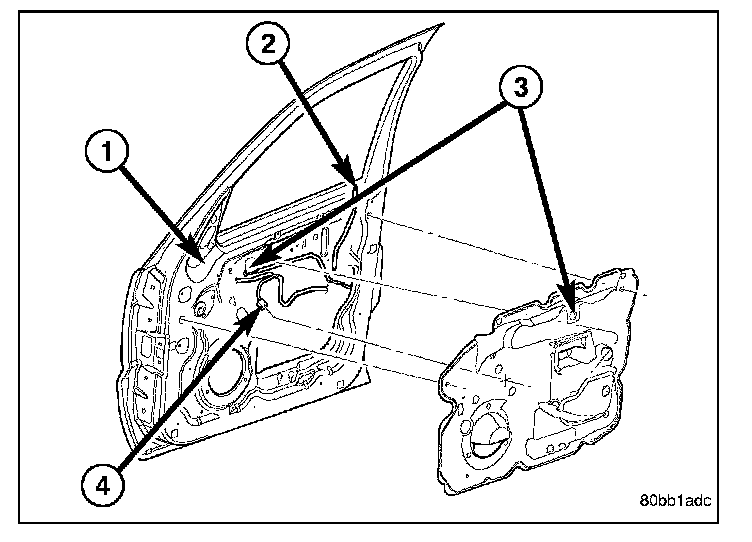

1. Remove the waterdam.

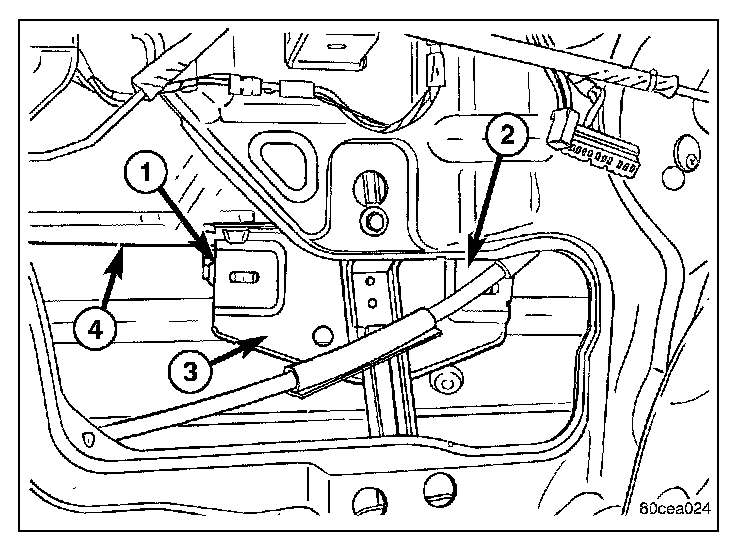

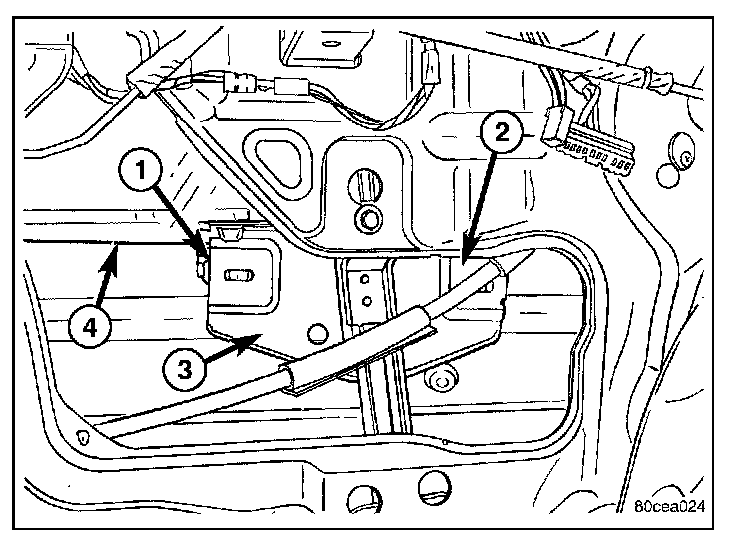

2. Raise the glass (4) to the position shown and using a long flat blade or hook type tool, disengage clips (1) attaching glass retainer to regulator lift plate (3).
3. Disconnect the glass from the regulator lift plate (3) and re-install the clips (1).
4. Secure the glass (4) in the up position using a wood wedge, tape or equivalent.

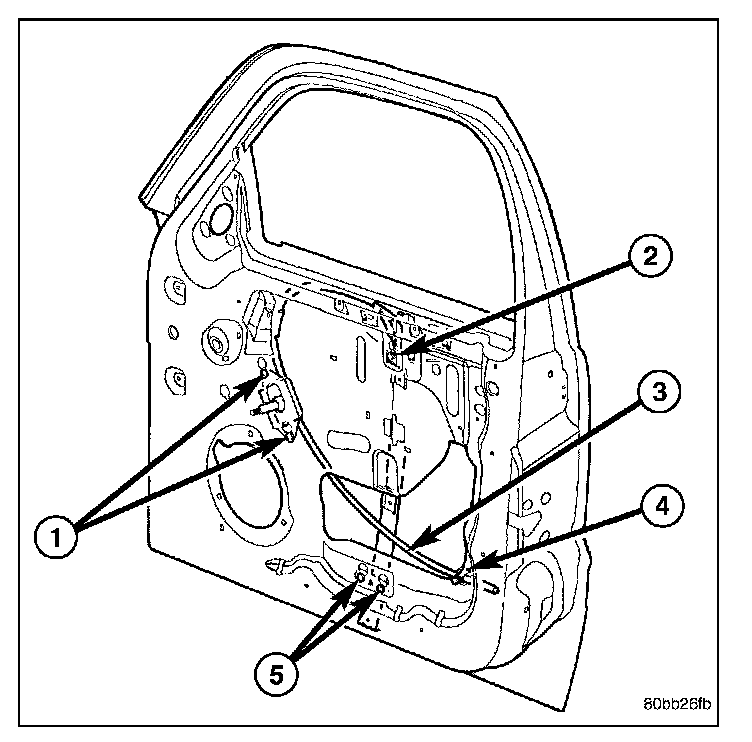

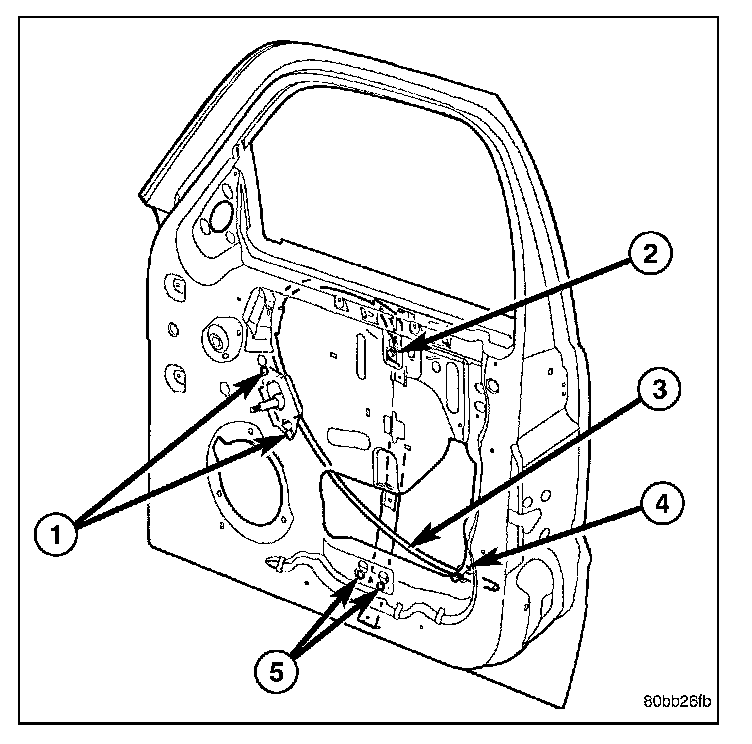

5. Loosen the bolts. (1, 2 and 5)
6. Disconnect the runout tube clip (4) and remove the regulator (3).

INSTALLATION




1. Install the regulator assembly (3).

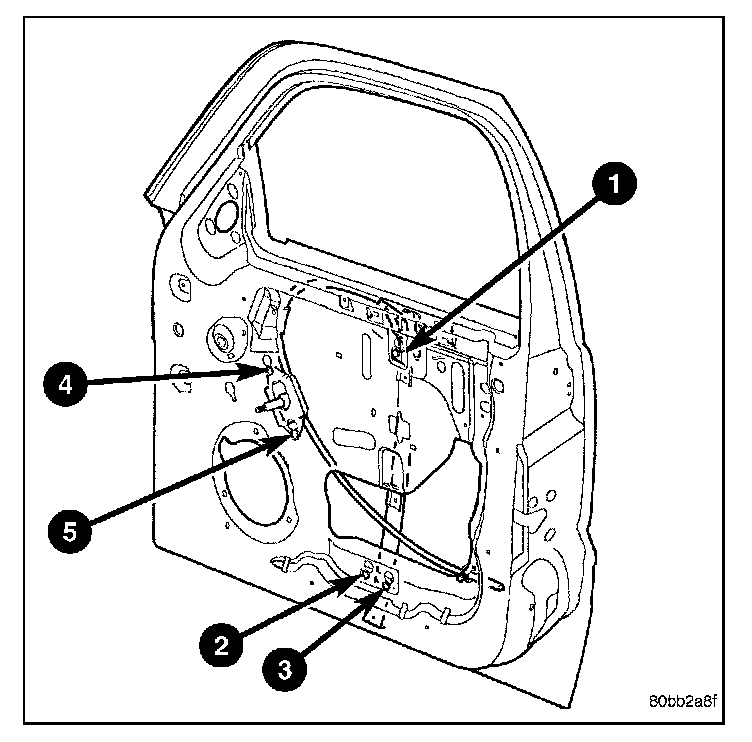

2. Tighten the bolts to 9 N.m (80 in. lbs.) using the sequence shown.




3. Remove the glass support and connect to the regulator lift plate (3).




4. Install the waterdam.
