Fuel Pressure Control Solenoid
Fuel Pressure Control Solenoid

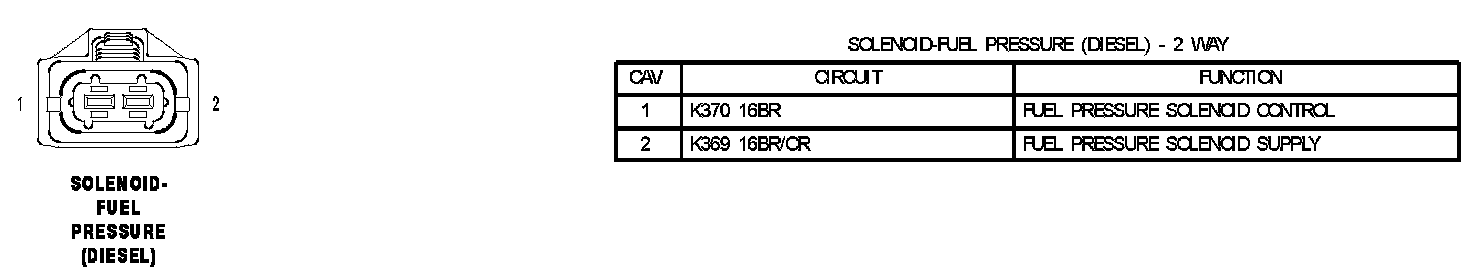

Solenoid - Fuel Pressure (Diesel):

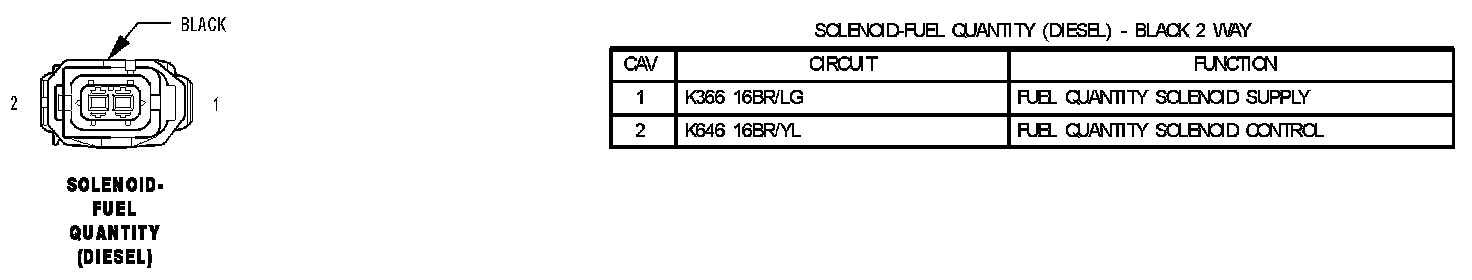

Solenoid - Fuel Quantity (Diesel):
