Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2006
>>
Liberty 4WD L4-2.8L DSL Turbo VIN 5
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

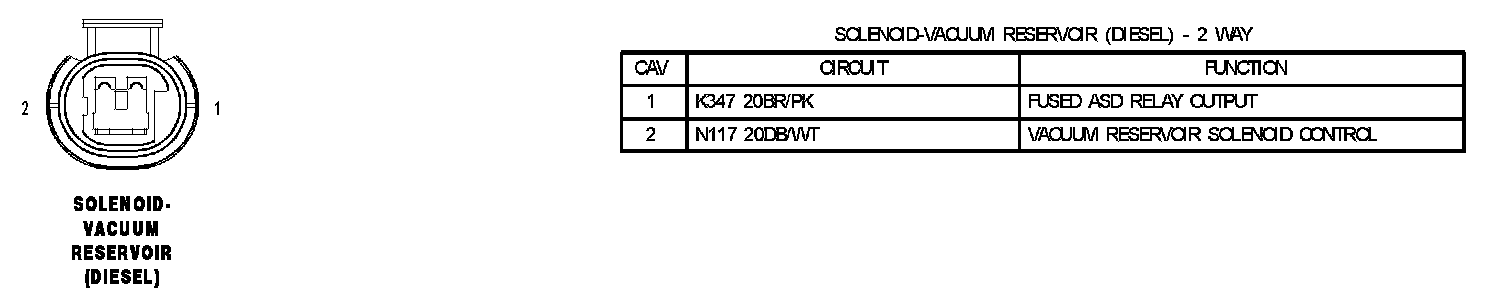

Solenoid - Vacuum Reservoir (Diesel):
