Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2006
>>
Liberty 4WD L4-2.8L DSL Turbo VIN 5
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Boost Solenoid
>>
Diagrams
Boost Solenoid: Diagrams

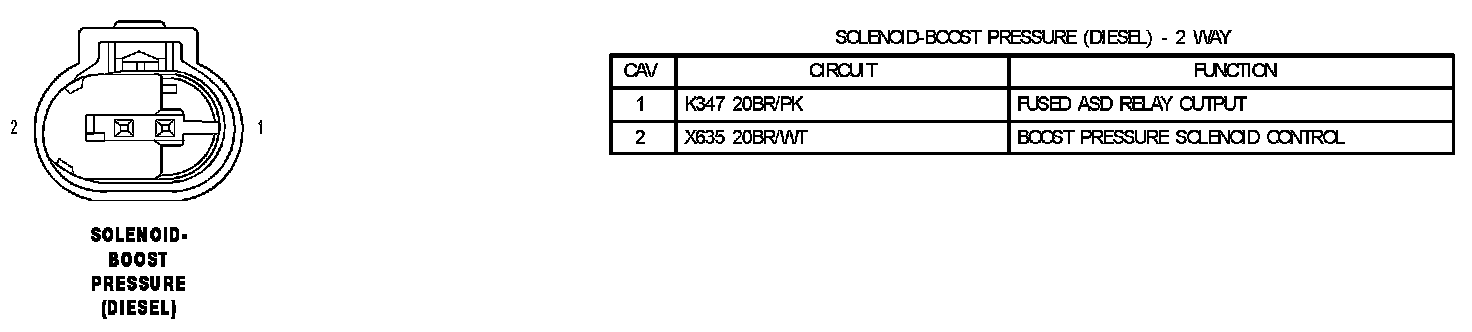

Solenoid - Boost Pressure (Diesel):
