Intake Manifold

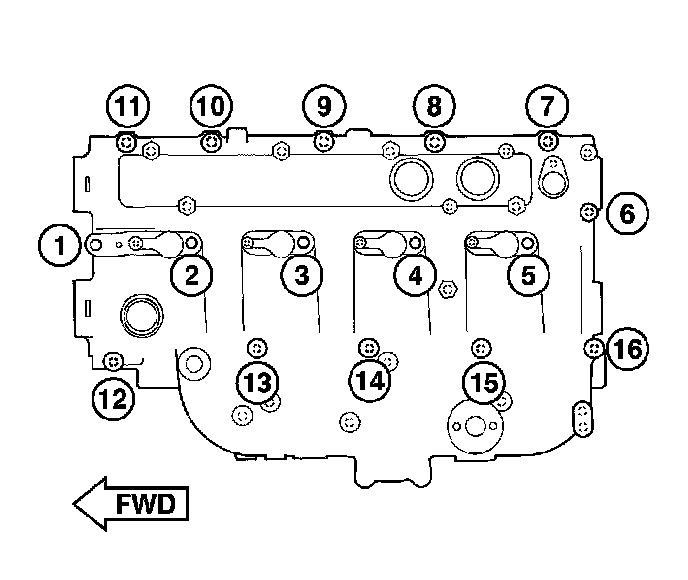

To seat cylinder head cover/intake manifold
Alternate between bolts #11 and #16 7 Nm

Torque all 25 Nm
