Cruise Control Servo: Locations

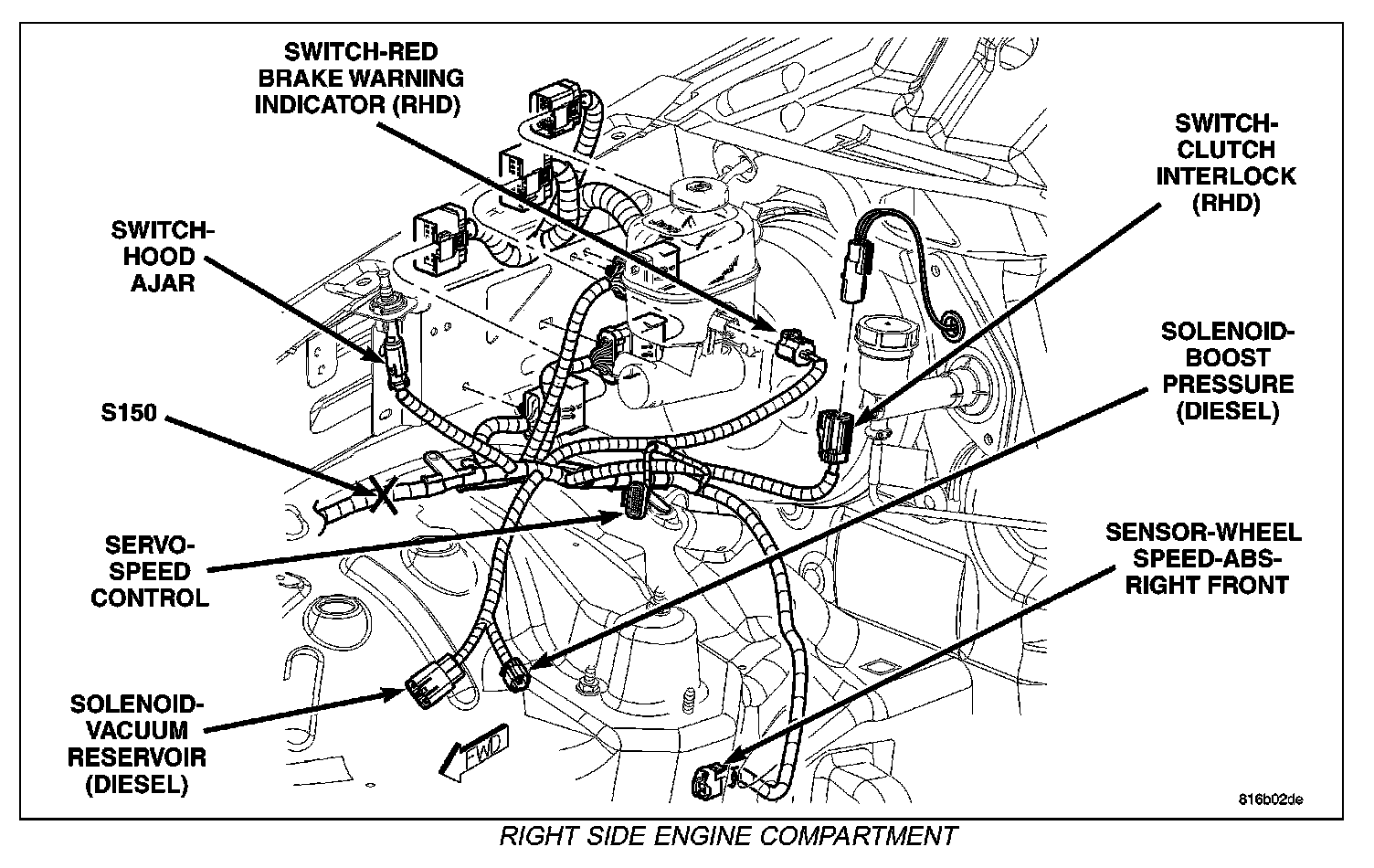

Right Side Engine Compartment:



Left Side Engine Compartment:

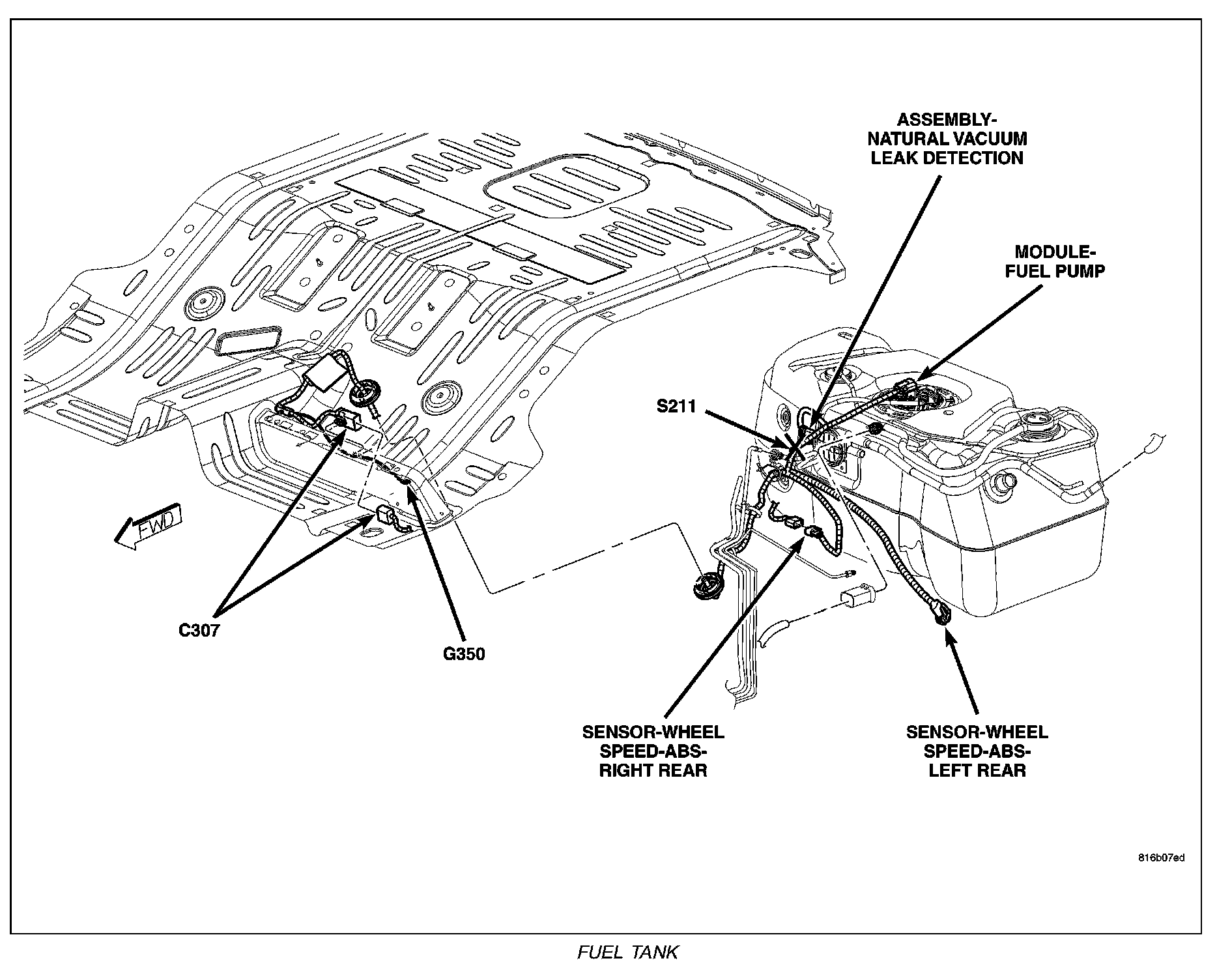

Fuel Tank:
