Mechanical Specifications
>>
Differential Assembly
>>
Front Axle - 186FIA
Front Axle - 186FIA

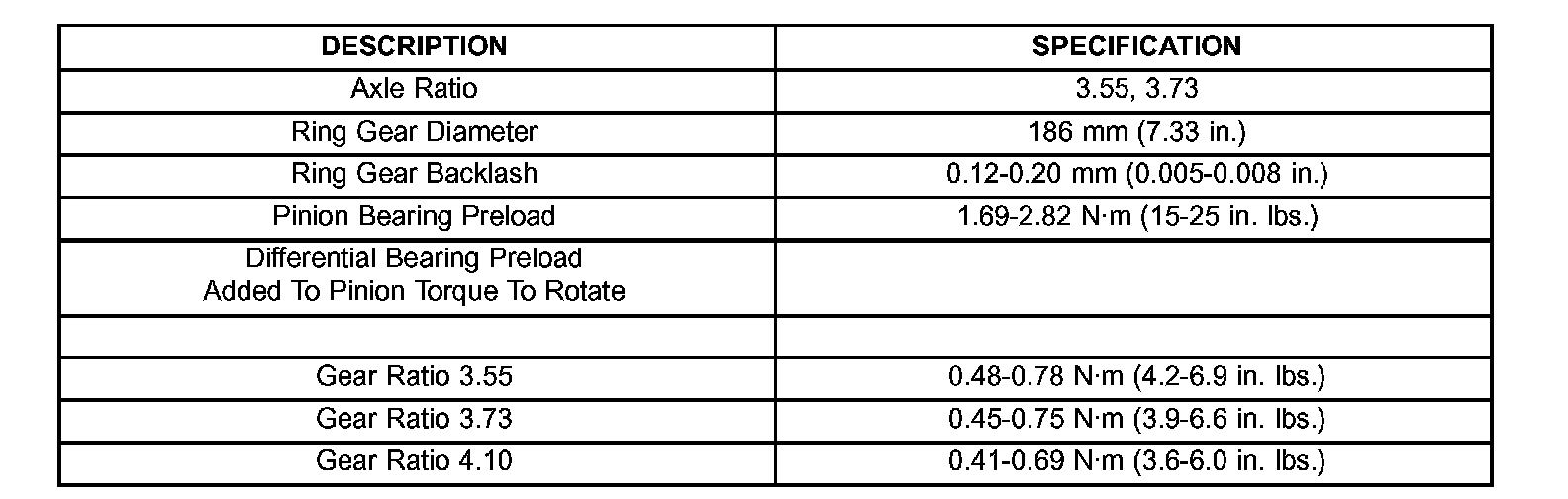

AXLE SPECIFICATIONS:

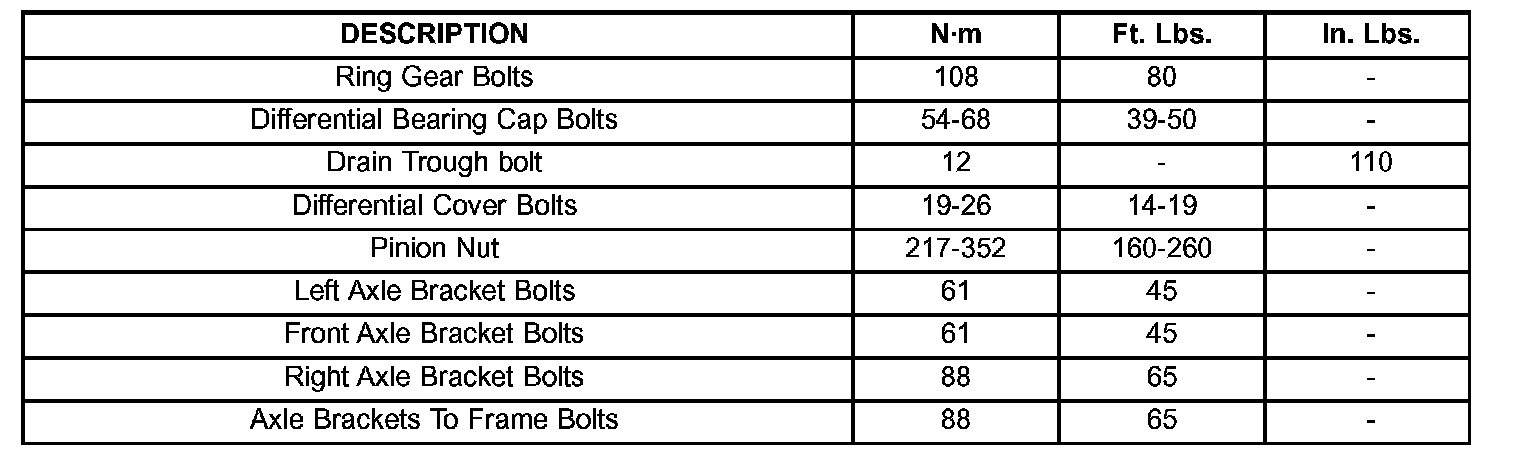

TORQUE SPECIFICATIONS:
