216RBI

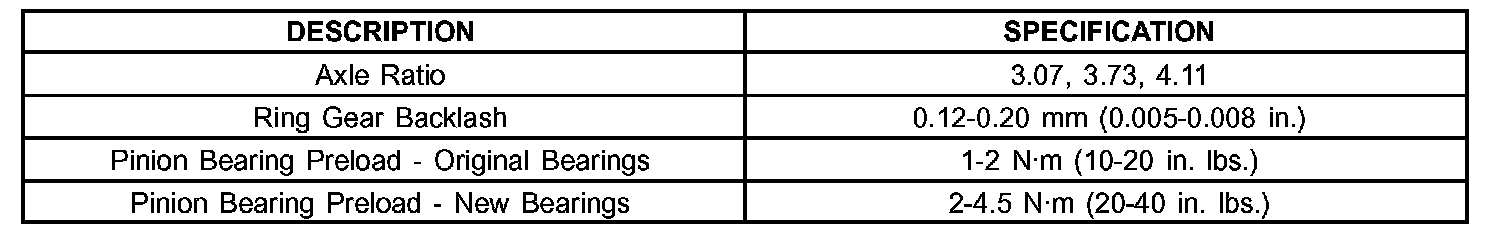

REAR AXLE - 216RBI SPECIFICATIONS:

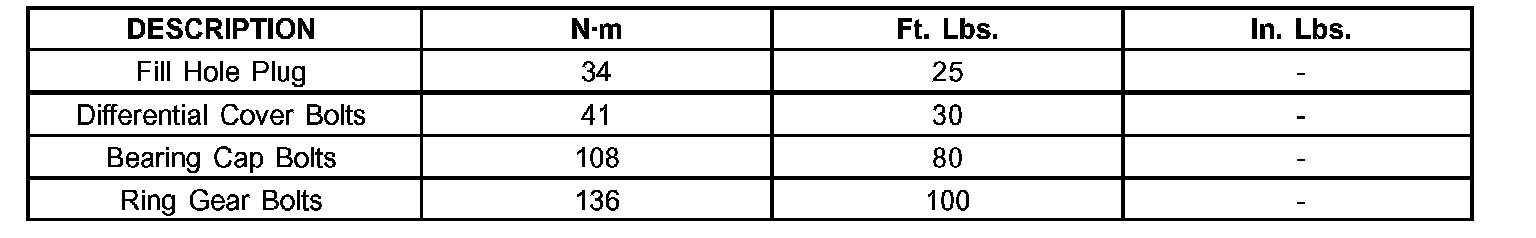

REAR AXLE - 216RBI TIGHTENING SPECIFICATIONS (PART 1):

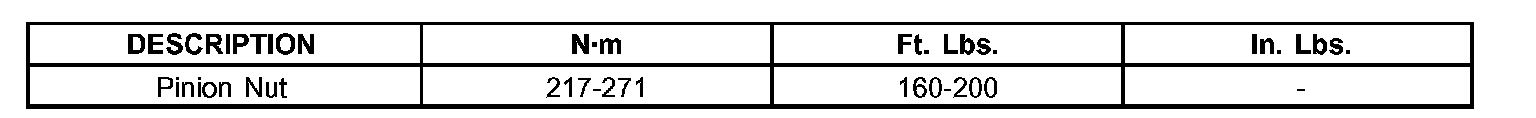

REAR AXLE - 216RBI TIGHTENING SPECIFICATIONS (PART 2):
