Refrigerant Pressure Sensor / Switch, HVAC
Refrigerant Pressure Sensor / Switch, HVAC

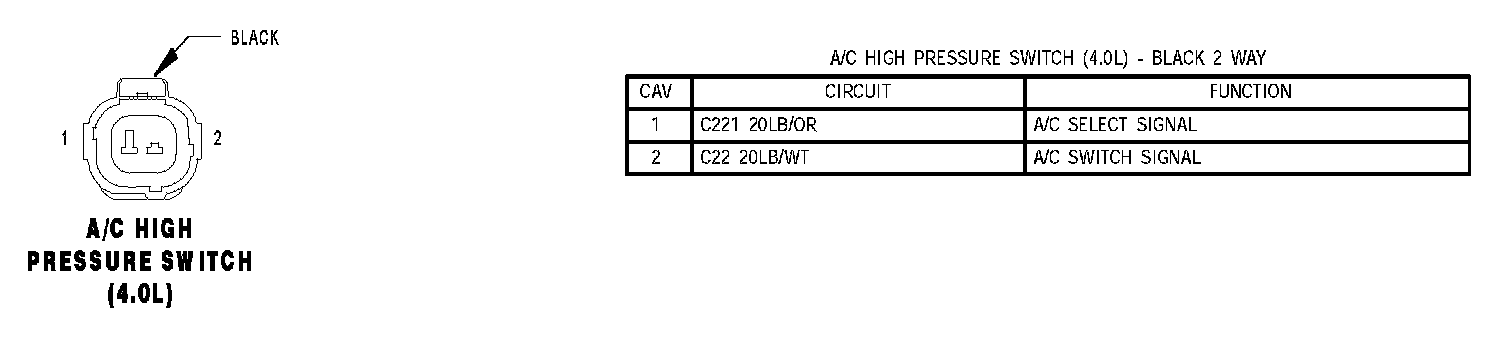

A/C High Pressure Switch (4.0L):

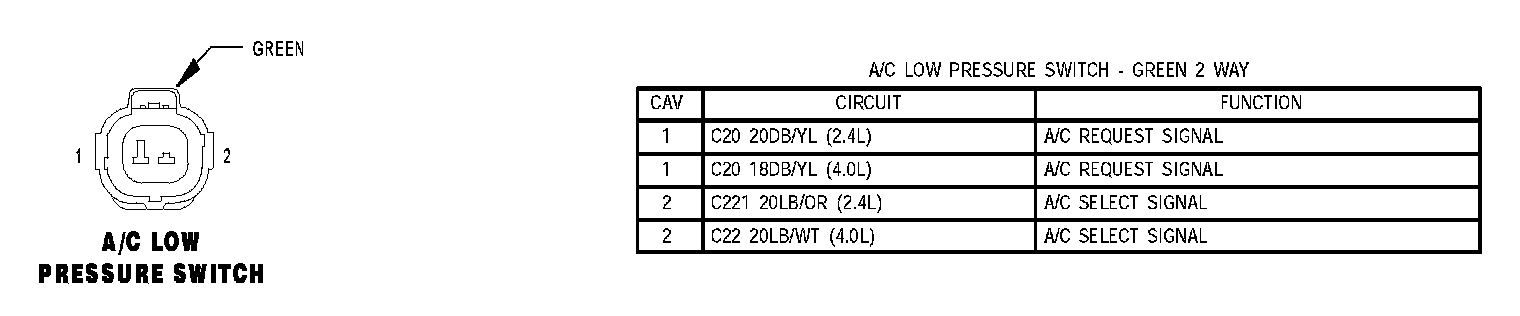

A/C Low Pressure Switch:
