Turn Signal Lamp
Turn Signal Lamp

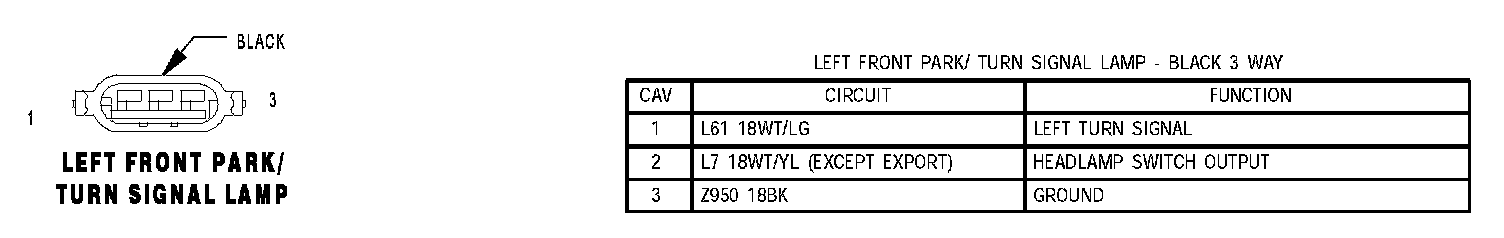

Left Front Park/ Turn Signal Lamp:

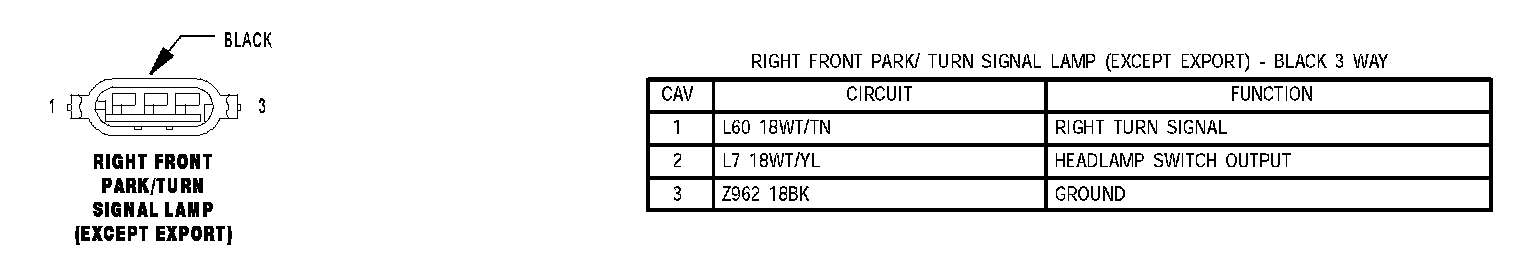

Right Front Park/Turn Signal Lamp (Except Export):
