Fluid - M/T: Service and Repair

MANUAL TRANSMISSION - NSG370

STANDARD PROCEDURE - DRAIN AND FILL
1. With vehicle in neutral, position vehicle on hoist.

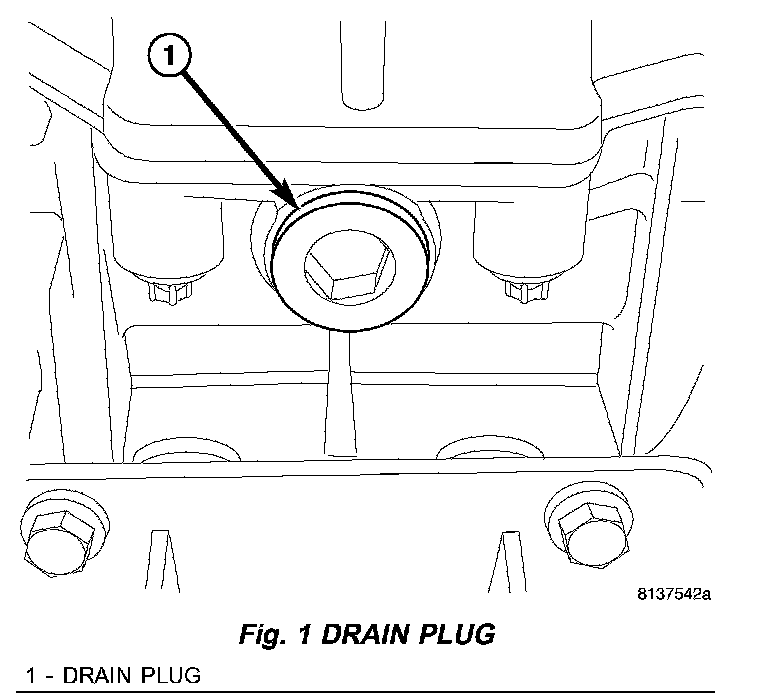

Fig. 1 DRAIN PLUG:

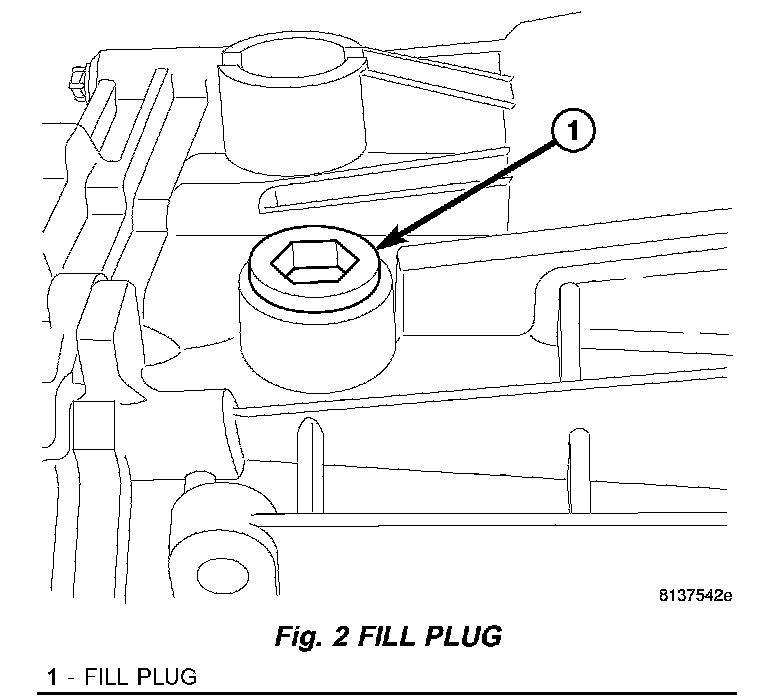

Fig. 2 FILL PLUG:

2. Remove drain plug (1) (Fig. 1) and drain fluid.
3. Install drain plug and remove fill plug (1) (Fig. 2).
4. Fill transmission with 1.5L (3.17 pts.) of Mopar Manual Transmission Lubricant MS-9224 or to the bottom of the fill plug (1) hole.
