194RBI

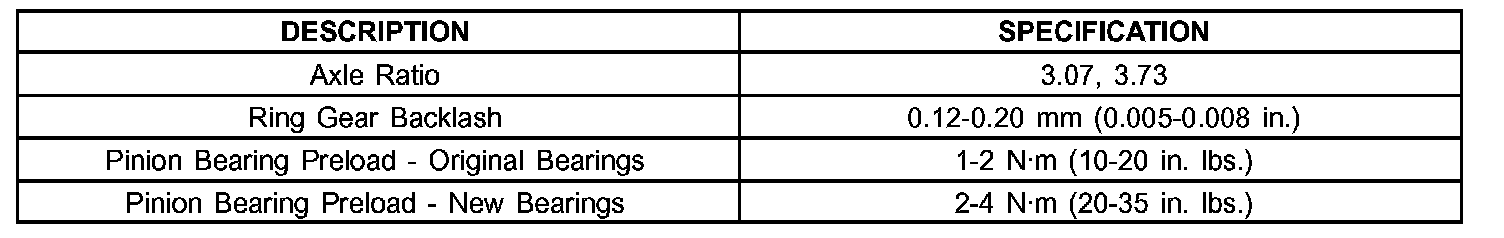

REAR AXLE - 194RBI SPECIFICATIONS:

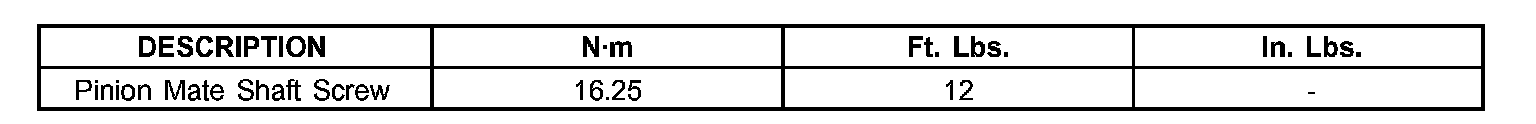

REAR AXLE - 194RBI TIGHTENING SPECIFICATIONS (PART 1):

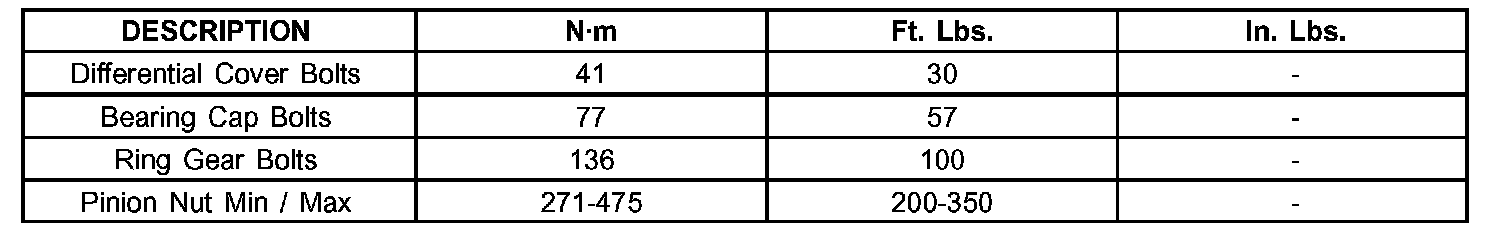

REAR AXLE - 194RBI TIGHTENING SPECIFICATIONS (PART 2):
