Module-Front Control
Component ID: 182
Component : MODULE-FRONT CONTROL

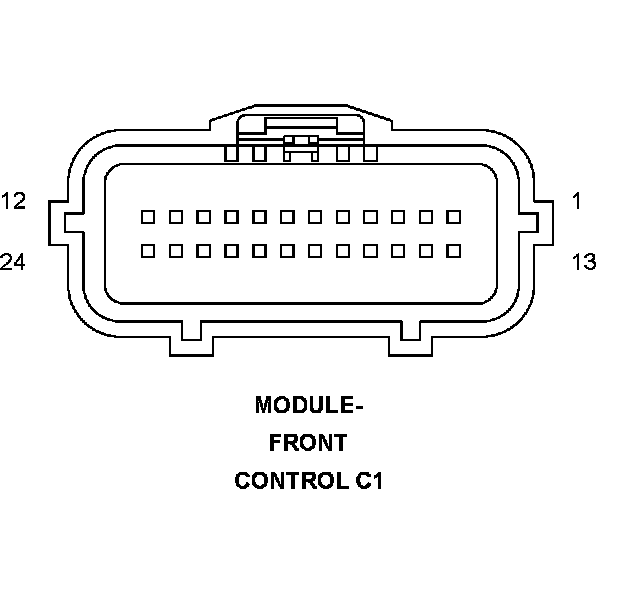

Connector:
Name : MODULE-FRONT CONTROL C1
Color :
# of pins : 24
Pin Description Circuit
1 GROUND Z131 18BK/DG
2 CAN B BUS (+) D55 20WT/OR
3 CAN B BUS (-) D54 20WT
4 IGNITION SWITCH OUTPUT (START) F26 18PK/OR
5 DIAGNOSTIC CAN C (+) D72 20WT/LB
6 DIAGNOSTIC CAN C (-) D71 20WT/DB
7 - -
8 CAN C BUS (+) D65 20WT/LG
9 CAN C BUS (-) D64 20WT/LB
10 BRAKE FLUID LEVEL SWITCH SENSE B20 20DG/OR
11 A/C PRESSURE SIGNAL C18 20LB/BR
12 - -
13 HAZARD SWITCH SENSE L91 20WT/DB
13 HAZARD SWITCH SENSE L91 20WT/TN
14 - -
15 - -
16 5 VOLT SUPPLY F891 20PK/GY
17 - -
18 WASHER FLUID LEVEL SENSOR SIGNAL W1 20BR/TN
19 - -
20 - -
21 BRAKE LAMP SWITCH OUTPUT L50 18WT/TN
22 GROUND Z387 18BK
23 HOOD AJAR SWITCH SENSE G70 20VT/LB
24 GROUND Z131 18BK/DG
Component Location - 6
Fig. 6:
Connector:
Name : MODULE-FRONT CONTROL C2
Color :
# of pins : 12
Pin Description Circuit
1 RIGHT LOW BEAM DRIVER L44 18WT/TN
2 - -
3 - -
4 AAT SIGNAL G31 20VT/OR
5 SENSOR GROUND G931 20VT/BR
6 LEFT LOW BEAM DRIVER L43 18WT/DB
7 LEFT HIGH BEAM DRIVER L33 18WT/DG
8 RIGHT TURN SIGNAL L60 20WT/TN
9 - -
10 LEFT TURN SIGNAL L61 20WT/LG
11 GROUND Z387 18BK
12 RIGHT HIGH BEAM DRIVER L34 18WT/GY
Component Location - 6
Fig. 6:
Connector:
Name : MODULE-FRONT CONTROL IPM
Color :
# of pins : 49
Pin Description Circuit
1 - -
2 FUSED B(+) INTERNAL
3 FUSED B(+) INTERNAL
4 FUSED B(+) INTERNAL
5 FUSED B(+) INTERNAL
6 - -
7 BACKUP LAMP FEED INTERNAL
8 - -
9 - -
10 PTC NO. 1 RELAY CONTROL K360 20GY/BR
11 REAR WASHER PUMP MOTOR CONTROL W20 18BR/YL
12 FRONT WASHER PUMP MOTOR CONTROL W10 20BR
13 FUSED IGNITION SWITCH OUTPUT (RUN-START) F1 18PK/WT
14 PTC NO. 2 RELAY CONTROL K361 20BR/WT
14 REMOTE START RELAY CONTROL K617 20BR/PK
15 FUSED B(+) INTERNAL
16 REMOTE START RELAY CONTROL K617 20BR/PK
17 FUSED IGNITION SWITCH OUTPUT (RUN-START) F942 20PK/LG
18 GROUND INTERNAL
19 GROUND INTERNAL
20 - -
21 RIGHT TRAILER TOW BRAKE LAMP RELAY CONTROL INTERNAL
22 LEFT TRAILER TOW BRAKE LAMP RELAY CONTROL INTERNAL
23 - -
24 GROUND INTERNAL
25 GROUND INTERNAL
26 FRONT FOG LAMP RELAY CONTROL INTERNAL
27 WIPER ON/OFF RELAY CONTROL INTERNAL
28 REAR FOG LAMP RELAY CONTROL INTERNAL
29 HIGH/LOW WIPER RELAY CONTROL INTERNAL
30 FUSED ASD RELAY OUTPUT A15 16RD/TN
31 FRONT WIPER PARK SWITCH SENSE W7 20BR/YL
32 GROUND INTERNAL
33 GROUND INTERNAL
34 RIGHT REAR TURN SIGNAL CONTROL L62 18WT/OR
35 FCM SENSOR RETURN C918 20BK/LB
36 - -
37 REAR WIPER RELAY CONTROL W12 20BR/OR
38 ACCESSORY DELAY RELAY CONTROL P305 20LG/LB
39 LOW SPEED RADIATOR FAN RELAY CONTROL INTERNAL
40 - -
41 GROUND INTERNAL
42 - -
43 LEFT REAR TURN SIGNAL CONTROL L63 18WT/DG
44 HOOD AJAR SWITCH SENSE G70 20VT/LB
45 HYDRAULIC RADIATOR FAN SOLENOID CONTROL K173 20BR/VT
46 ADJUSTABLE PEDALS RELAY CONTROL INTERNAL
47 HORN RELAY CONTROL INTERNAL
48 PARK LAMP RELAY CONTROL INTERNAL
49 RADIATOR FAN HIGH RELAY CONTROL INTERNAL
Component Location - 6
Fig. 6:
