Grand Cherokee 2WD V6-3.0L DSL Turbo VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>

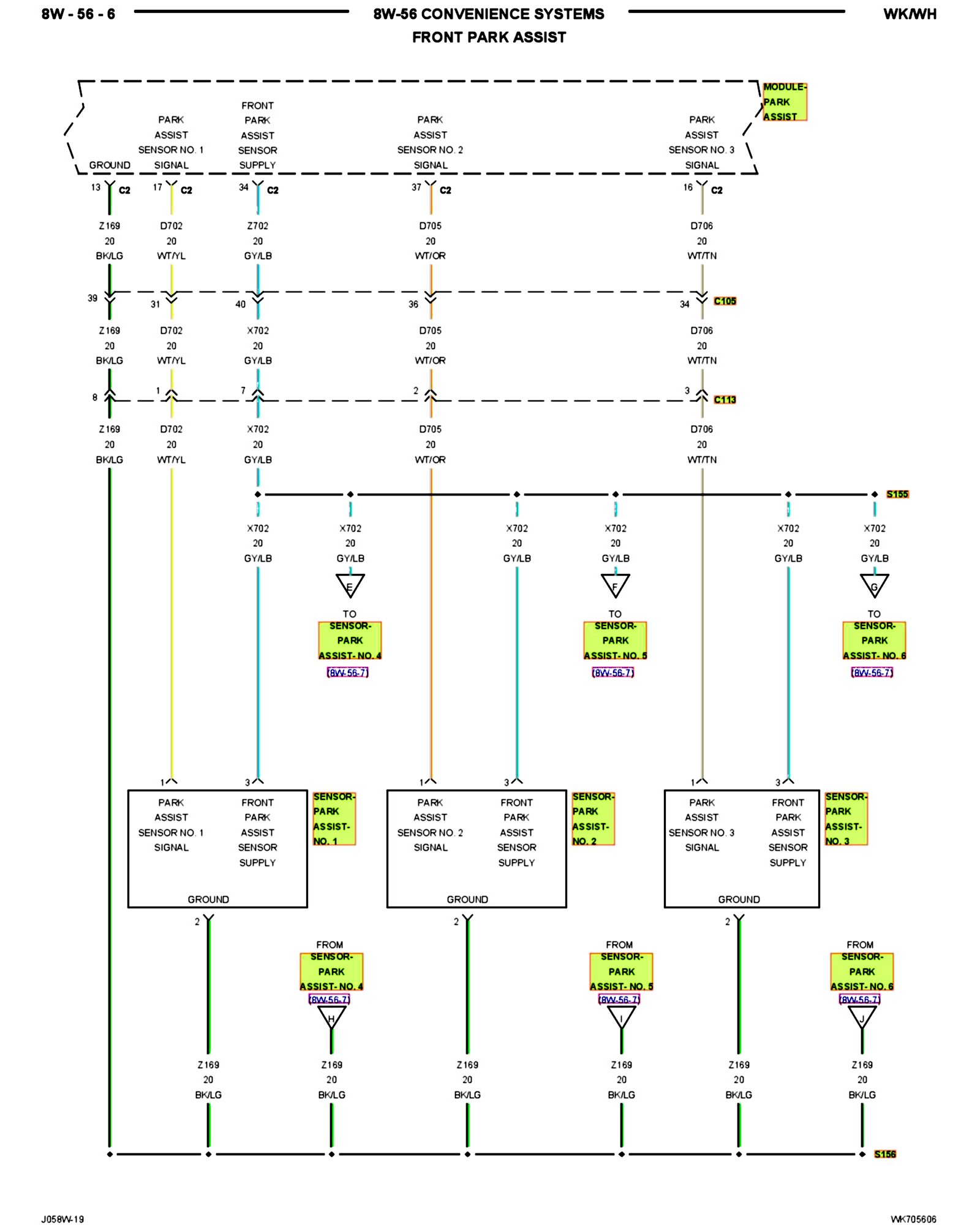

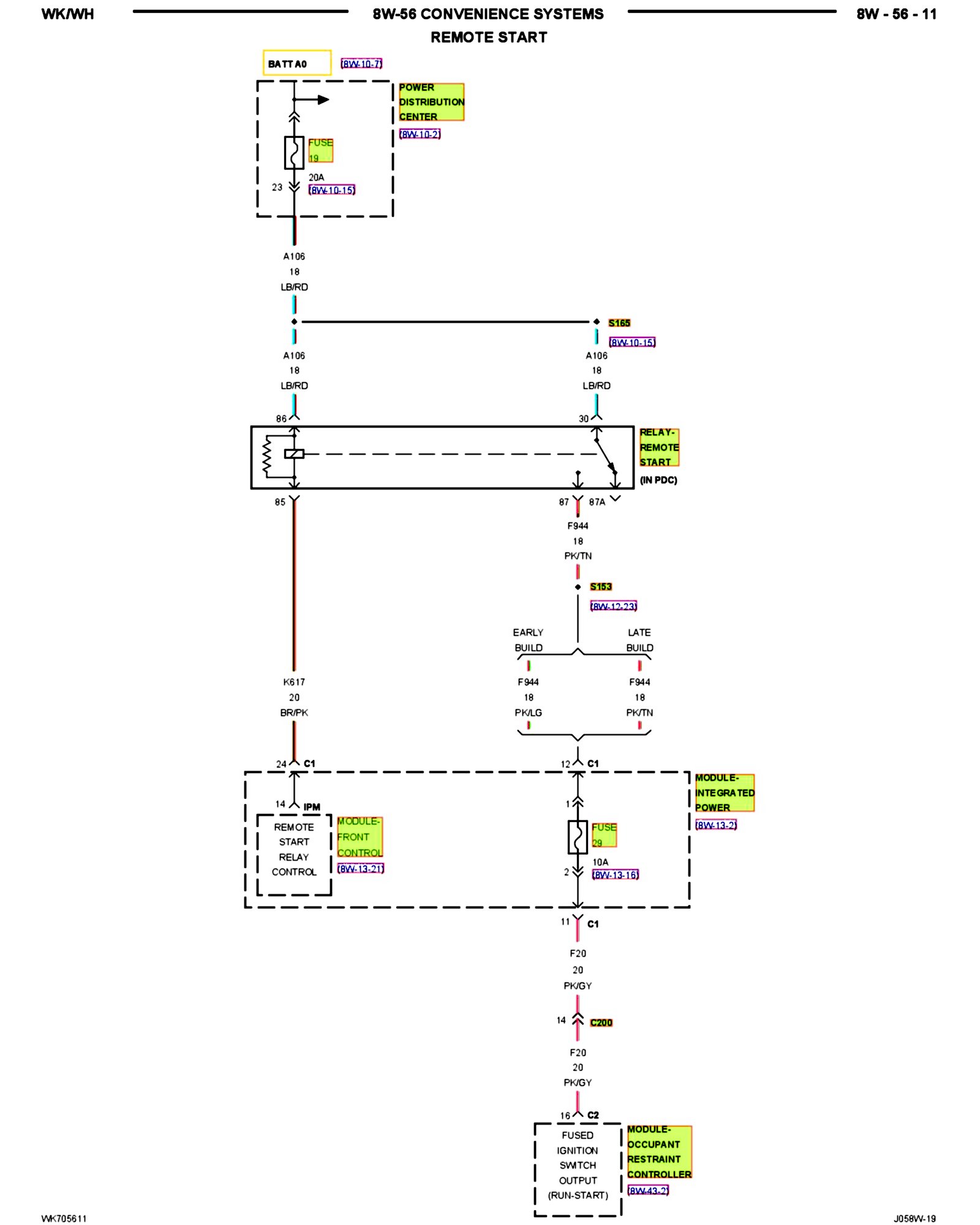

Group 8W-56 (Convenience Systems)
Group 8W-56 (Convenience Systems)
8w-56-02:
8w-56-03:
8w-56-04:
8w-56-05:
8w-56-06:
8w-56-07:
8w-56-08:
8w-56-09:
8w-56-10:
8w-56-11:
