NAG1 Automatic Transmission
>>
Automatic Transmission
Automatic Transmission
AUTOMATIC TRANSMISSION

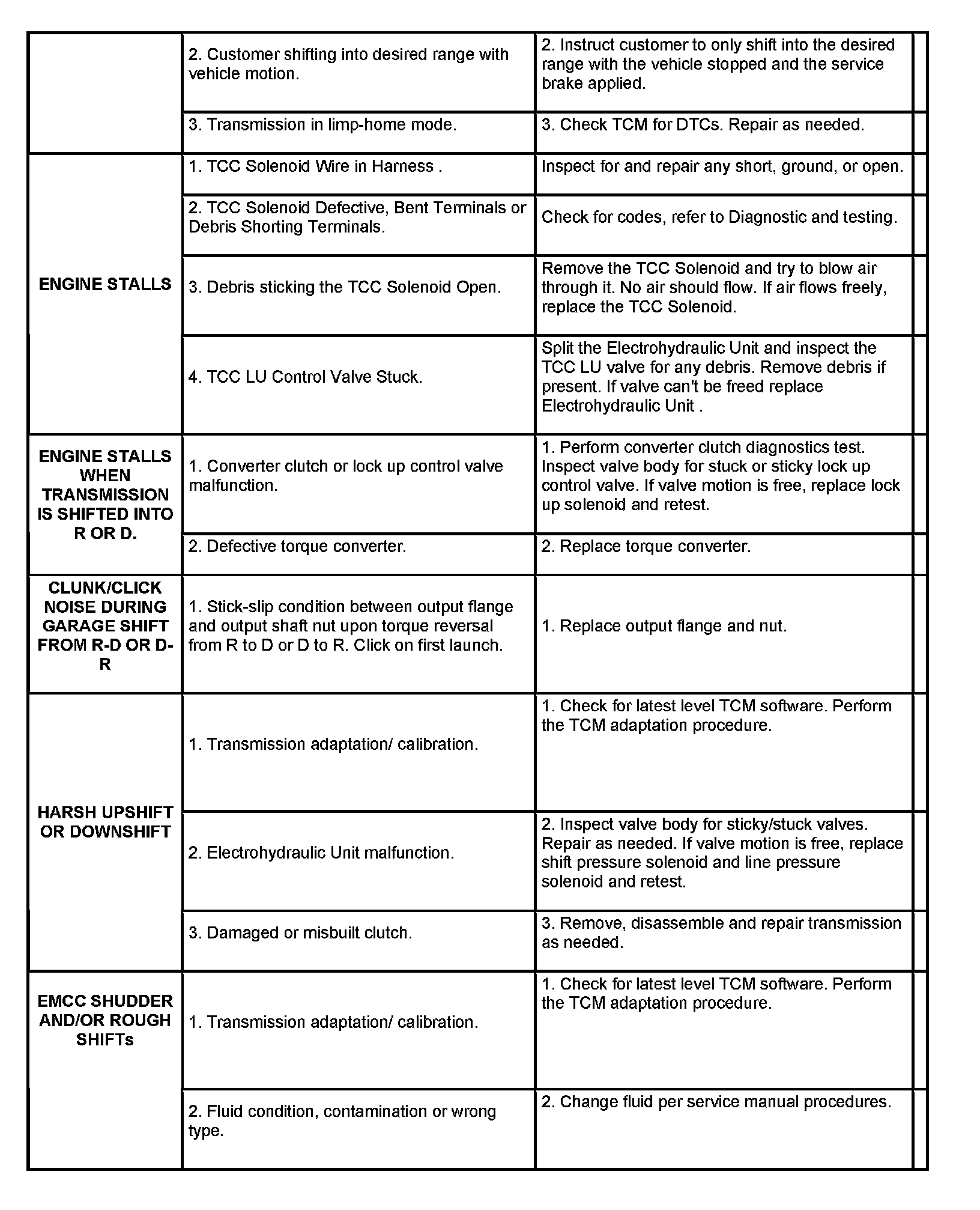

Diagnostic Chart:
