Cruise Control Servo: Locations

Component ID: 494

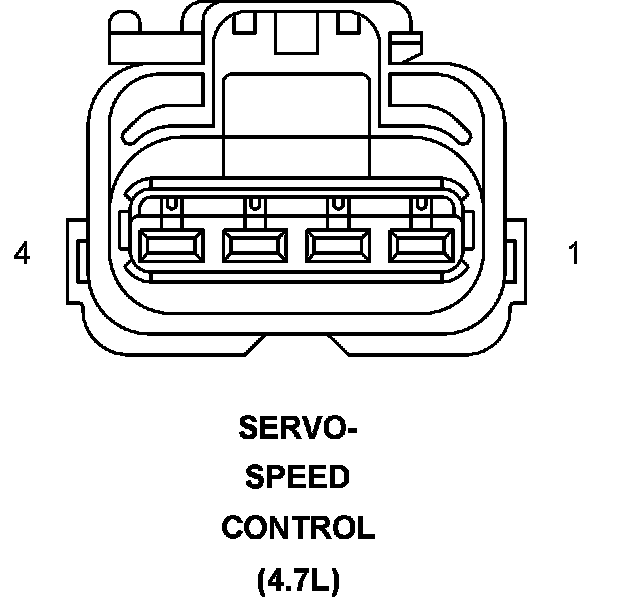

Component : SERVO-SPEED CONTROL

Connector:
Name : SERVO-SPEED CONTROL
Color :
# of pins : 4
Qualifier : (4.7L)




Pin Description Circuit
1 S/C VACUUM SOL CONTROL V36 20VT/YL
2 S/C VENT SOL CONTROL V35 20VT/OR
3 S/C BRAKE SWITCH OUTPUT V30 20VT/WT
4 GROUND Z384 20BK

Component Location - 1
