Switch-Speed Control-Left
Component ID:
531
Component :
SWITCH-SPEED CONTROL-LEFT

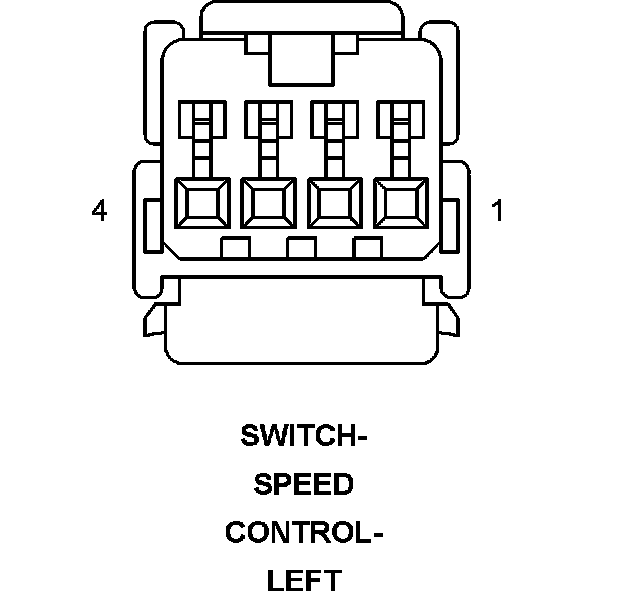

Connector:
Name :
SWITCH-SPEED CONTROL-LEFT
Color :
# of pins :
4
Pin Description Circuit 1
S/C SWITCH NO. 2 SIGNAL
V372 20OR/VT
2
S/C SWITCH RETURN
V397 20VT/BR
3
S/C SWITCH NO. 1 SIGNAL
V371 20VT/OR
4
-
-
Component Location - 44
