Voice Activation Module

Component ID: 185

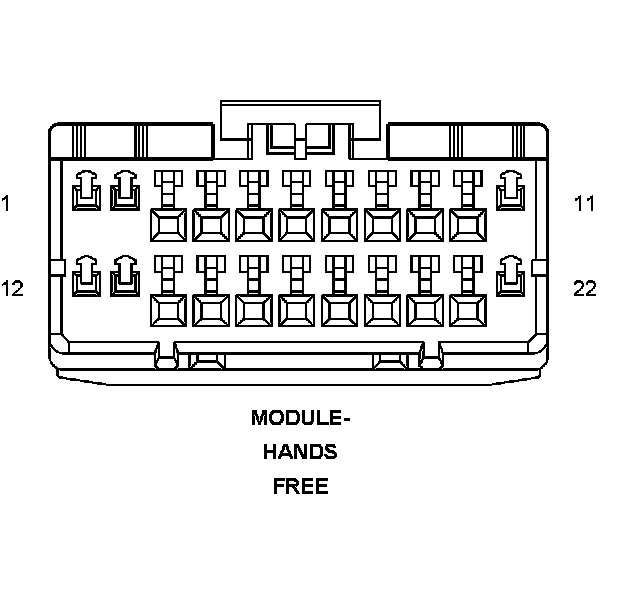

Component : MODULE-HANDS FREE

Connector:
Name : MODULE-HANDS FREE
Color :
# of pins : 22




Pin Description Circuit
1 FUSED B(+) A114 18GY/RD
2 - -
3 - -
4 CAN B BUS (-) D54 20WT
5 MICROPHONE 2 IN (+) X722 20LB/DG
6 - -
7 - -
8 LEFT AUDIO OUTPUT X703 20DG/OR
9 RIGHT AUDIO OUTPUT X704 20DG/YL
10 COMMON AUDIO OUTPUT X795 20DG
11 - -
12 - -
13 - -
14 CAN B BUS (+) D55 20WT/OR
15 VOICE RECOGNITION/PHONE SWITCH SIGNAL X730 20GY/YL
16 MICROPHONE 1 IN (+) X712 20DG/LB
17 MICROPHONE IN (-) X792 20LB/YL
18 HANDS FREE MICROPHONE SHIELD X735 20GY/LB
19 - -
20 MICROPHONE FEED X793 20DG/OR
21 SENSOR GROUND X835 20OR/GY
22 GROUND Z907 20BK

Component Location - 42

Fig. 42:
