BRAKE COMPONENTS

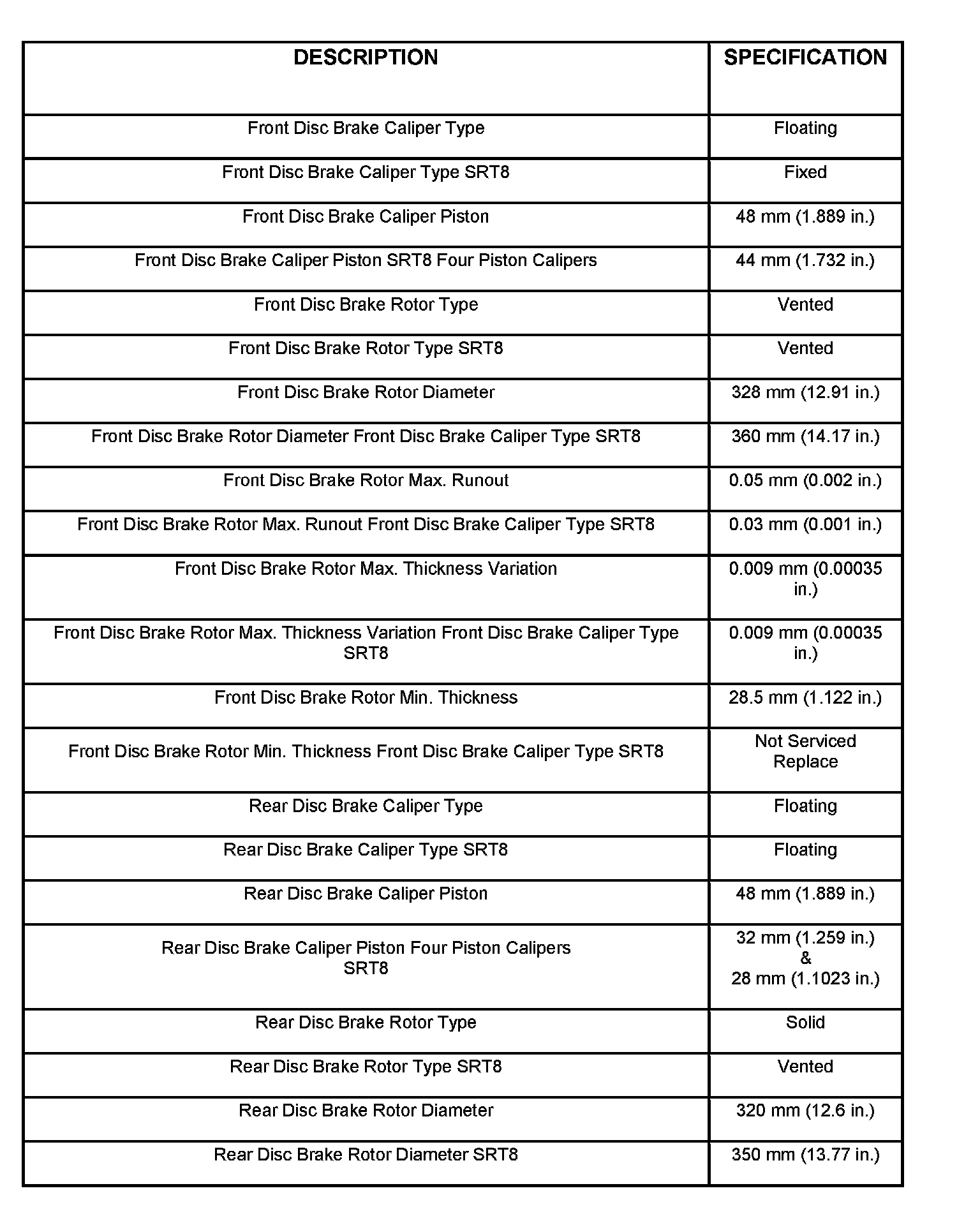

BRAKE COMPONENTS (Part 1):
BRAKE COMPONENTS (Part 1)

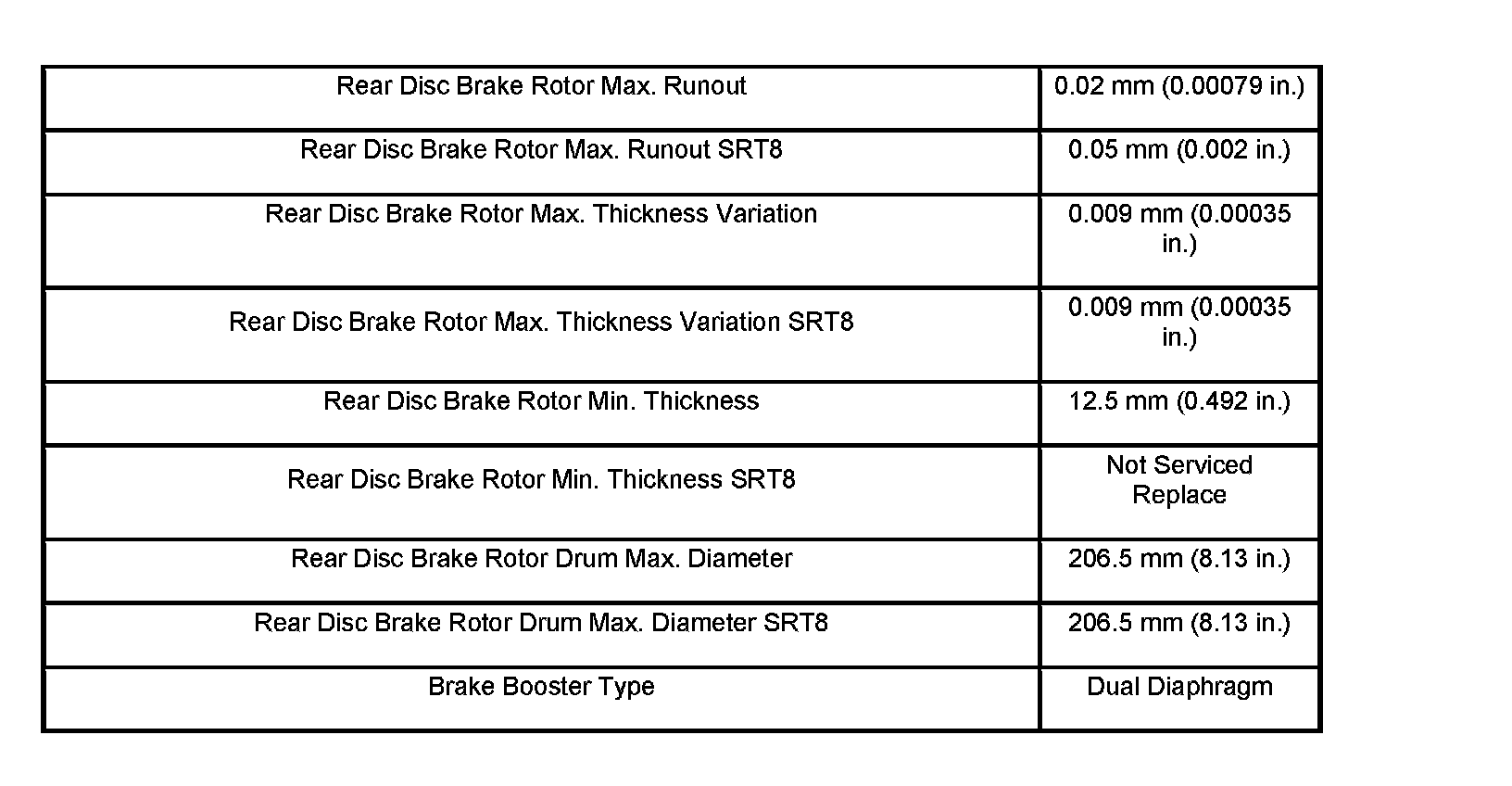

BRAKE COMPONENTS (Part 2):
BRAKE COMPONENTS (Part 2)
