Installation

INSTALLATION

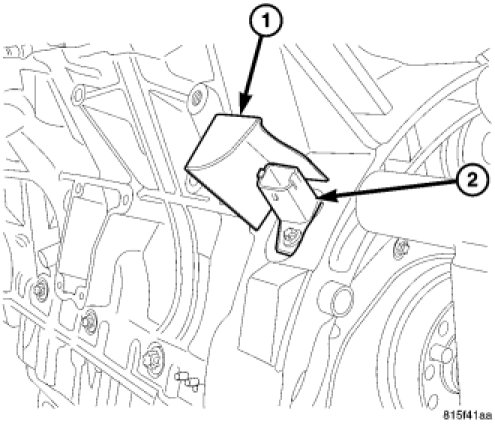

1. Clean the crankshaft sensor bore and install the sensor (2). Tighten the bolt to 9 Nm (80 in. lbs.).

2. Connect the engine harness connector.

3. Install the heat shield (1).

4. Lower the vehicle.

5. Connect the negative battery cable.
