Sensor-Side Impact-Left 1

Component ID: 481

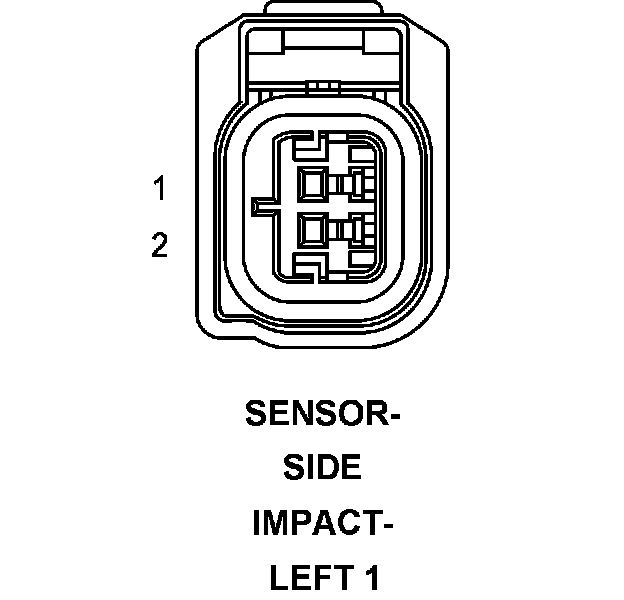

Component : SENSOR-SIDE IMPACT-LEFT 1

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 1
Color :
# of pins : 2




Pin Description Circuit
1 LEFT SIDE IMPACT SENSOR 1 GROUND R15 20LG/BR
Pin Description Circuit
1 LEFT SIDE IMPACT SENSOR 1 GROUND R15 20LG/OR
2 LEFT SIDE IMPACT SENSOR 1 SIGNAL R13 20LG/TN
2 LEFT SIDE IMPACT SENSOR 1 SIGNAL R13 20LG/VT

Component Location - 56
