System Specifications

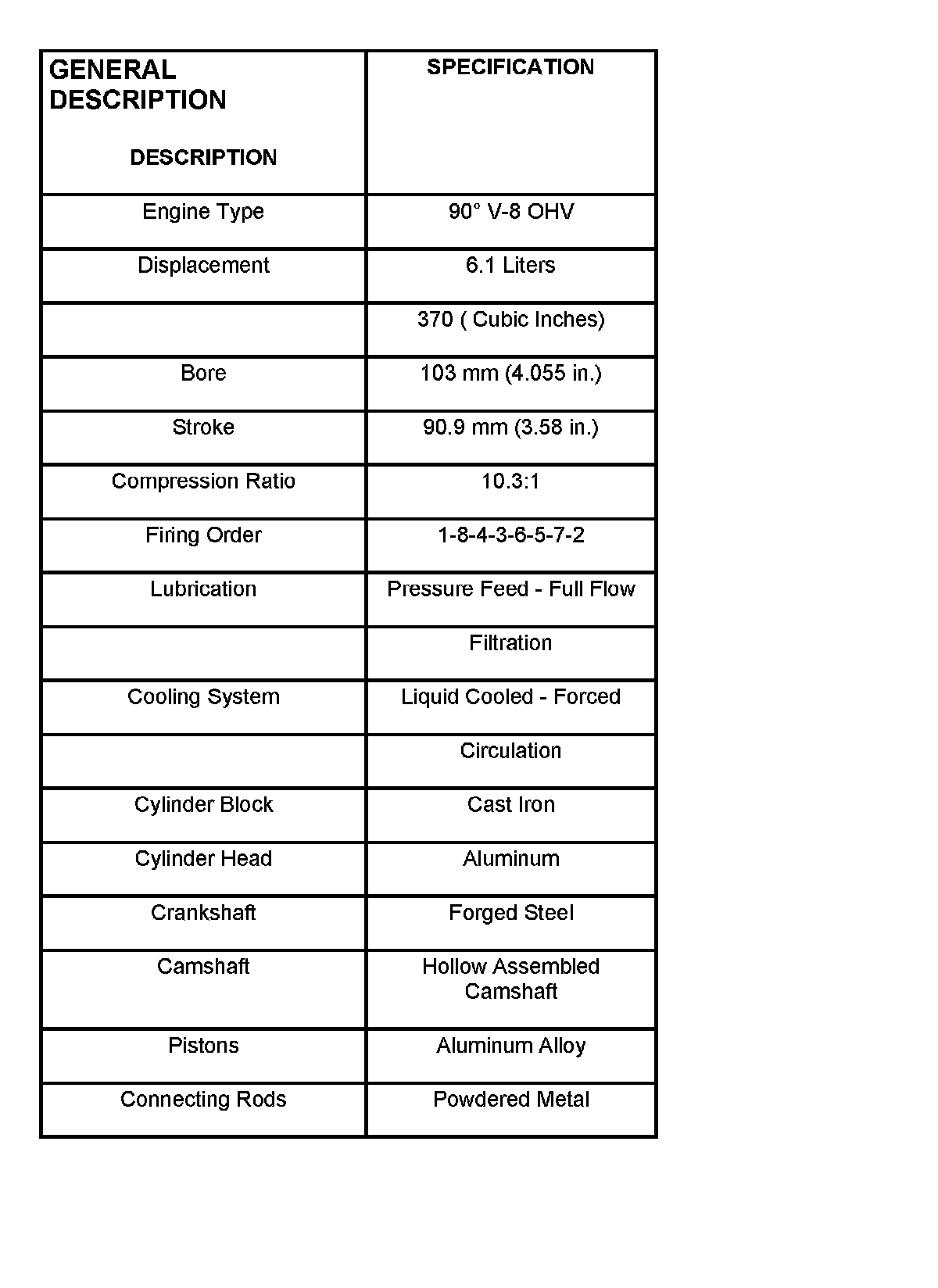

General Description:

General Description

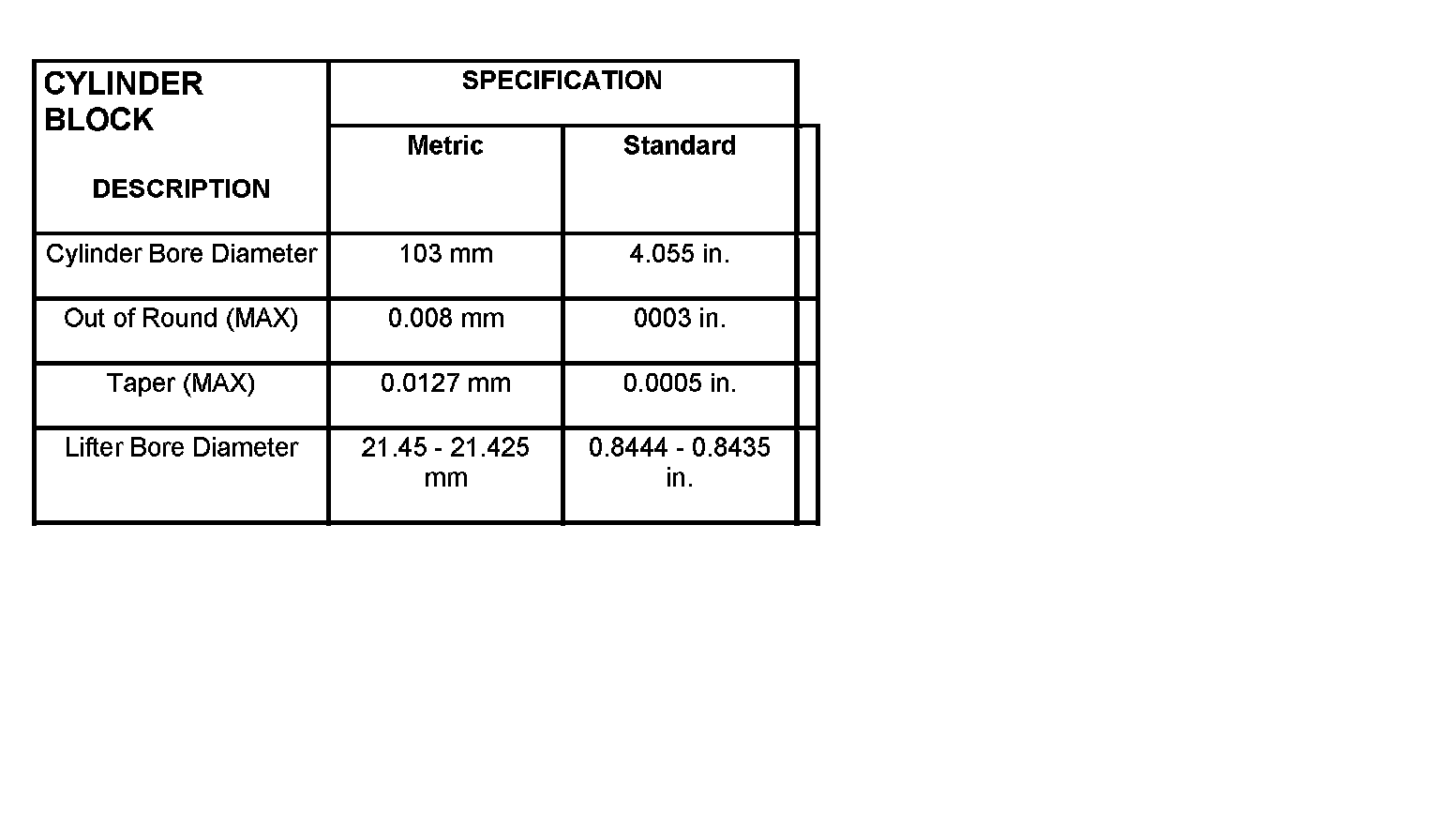

Cylinder Block:

Cylinder Block

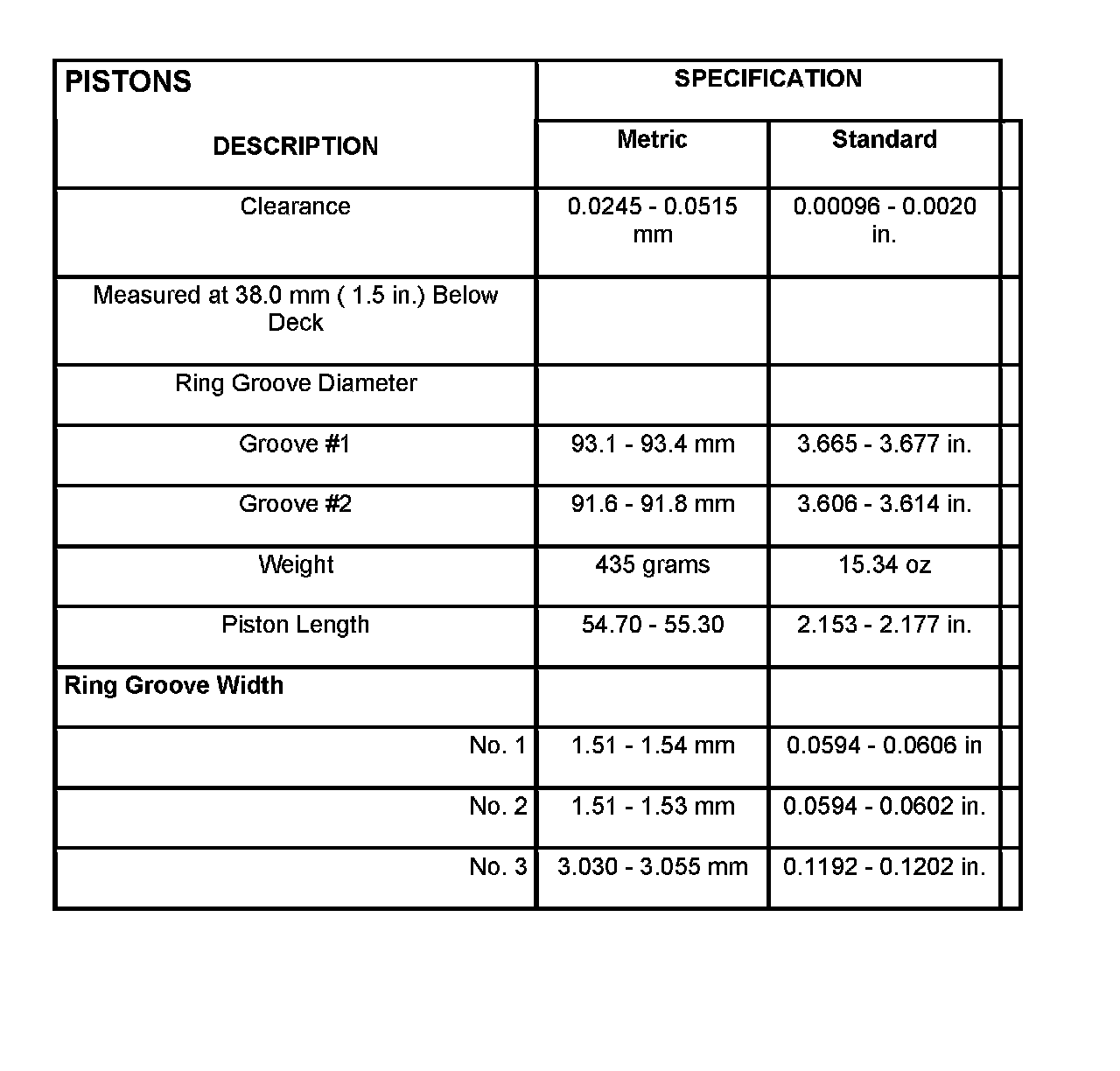

Pistons:

Pistons

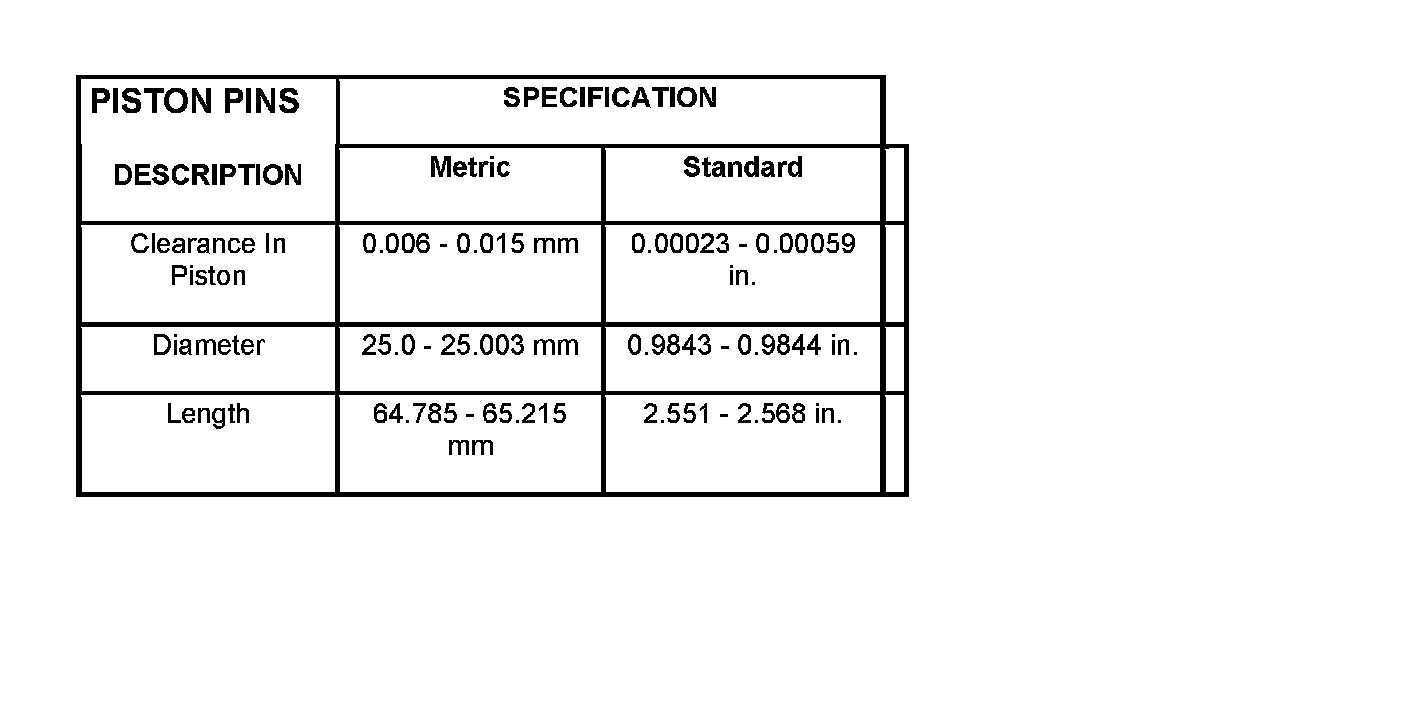

Piston Pins:

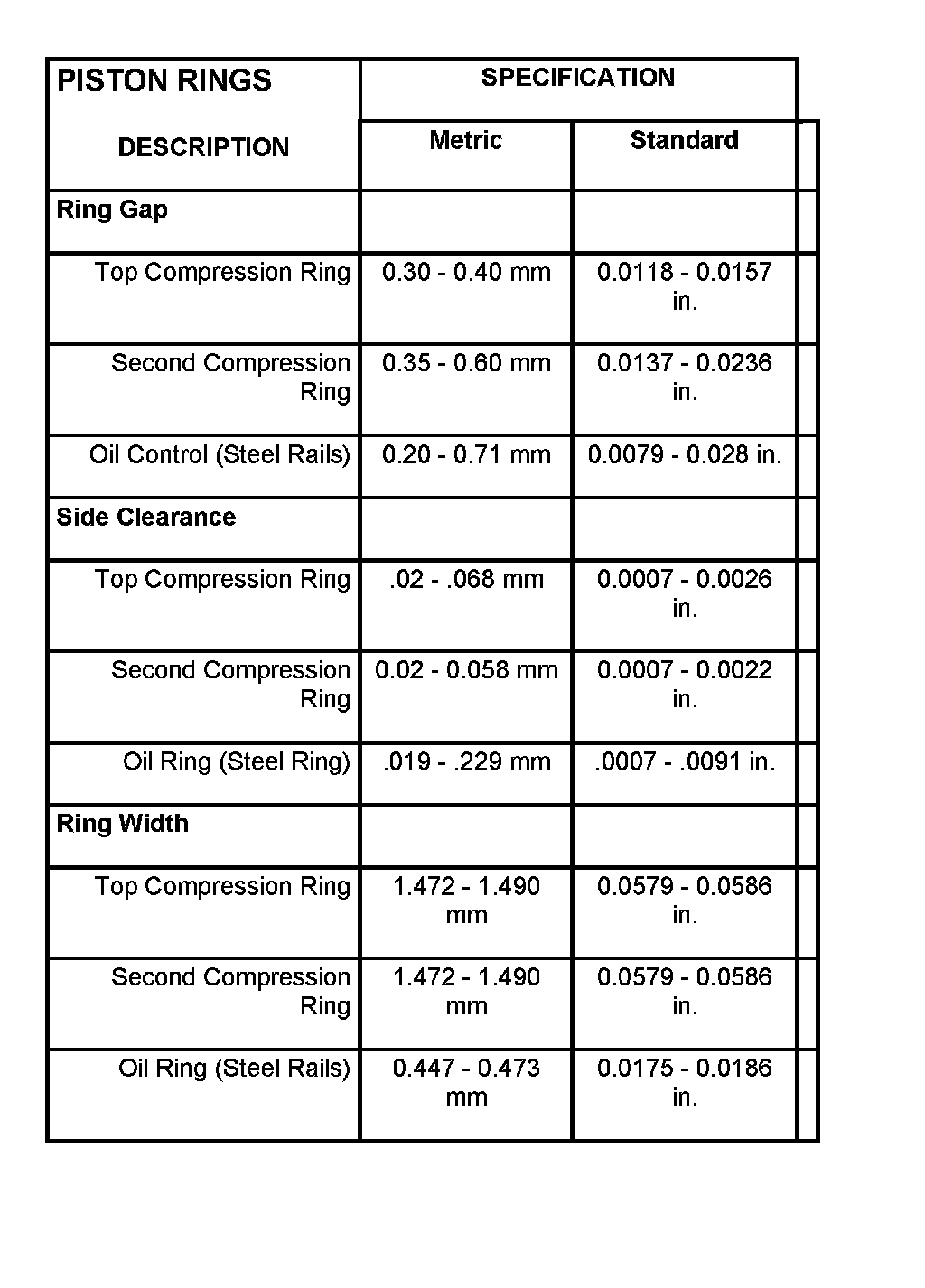

Piston Rings:

Connecting Rods:

Connecting Rods

Crankshaft:

Crankshaft

Vibration Damper-Bolt 176 Nm (129 ft. lbs.)

Connecting Rod Cap-Bolts 45 Nm plus 60� Turn (33 ft. lbs.) plus 60� Turn

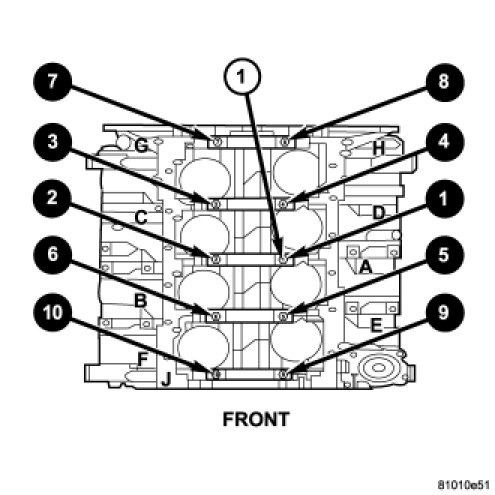

Main Bearing Cap-Bolts
M-12 28 Nm plus 90� Turn
Crossbolts M-8 21.5 Nm
