Installation

INSTALLATION

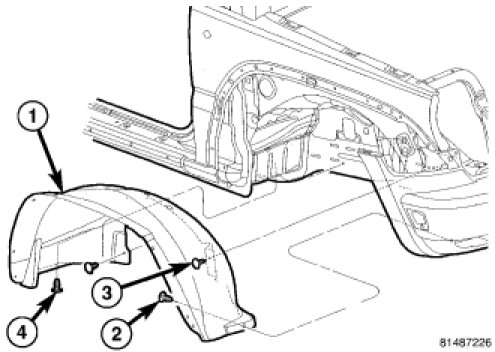

1. Install the splash shield (1) and position above the wheel opening flare molding.

2. Install the four push pin fasteners (2 - 4).

3. Install the three screw/rivets connecting the splash shield to the fascia.

4. Install the four rivets connecting the flare to the splash shield

5. Install the rivet connecting the splash shield to the side sill molding.
