Installation

INSTALLATION

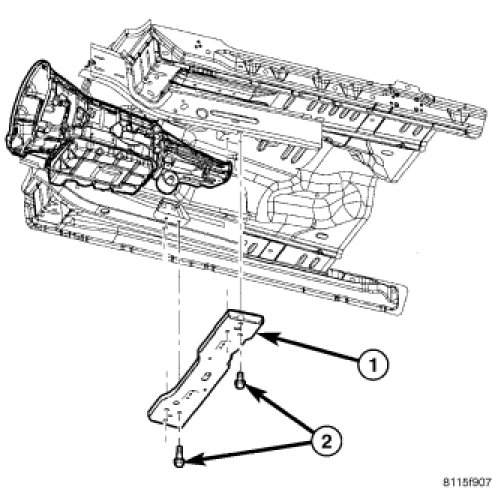

1. Install the crossmember and install the bolts.

2. Tighten the bolts to 47 Nm (35 ft. lbs.)

3. Install transmission mount through bolt and tighten to 88 Nm (65 ft. lbs.).
