Power Outlet-Instrument Panel

Component ID: 197

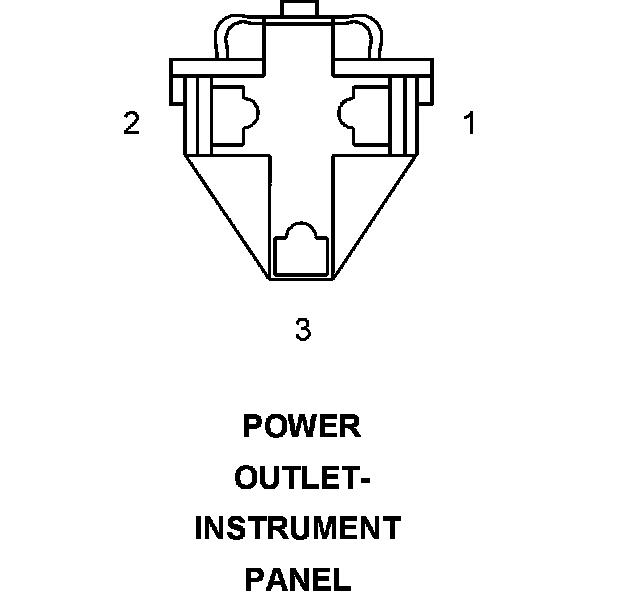

Component : POWER OUTLET-INSTRUMENT PANEL

Connector:
Name : POWER OUTLET-INSTRUMENT PANEL
Color :
# of pins : 3




Pin Description Circuit
1 FUSED B(+) A207 16RD/LG
Pin Description Circuit
1 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F307 16LB/PK
2 - -
3 GROUND Z940 16BK
