Assembly-Line Pressure Sensor/Variable Force Solenoid

Component ID: 12
Component : ASSEMBLY-LINE PRESSURE SENSOR/VARIABLE FORCE SOLENOID

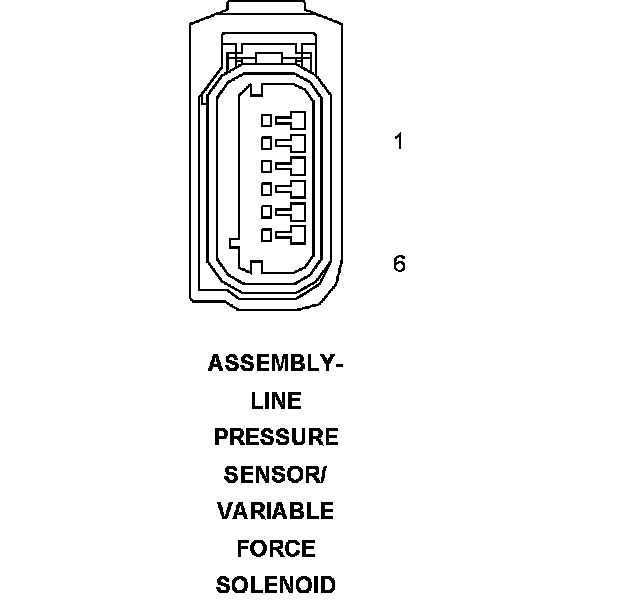

Connector:
Name : ASSEMBLY-LINE PRESSURE SENSOR/VARIABLE FORCE SOLENOID
Color :
# of pins : 6




Pin Description Circuit
1 - -
2 5 VOLT SUPPLY F856 20YL/PK
3 LINE PRESSURE SENSOR SIGNAL T38 20YL/BR
4 SENSOR GROUND K900 20DB/DG
5 TRANSMISSION CONTROL RELAY OUTPUT T16 18YL/OR
6 PRESSURE CONTROL SOLENOID CONTROL T118 18YL/GY

Component Location - 5

Fig. 5:
