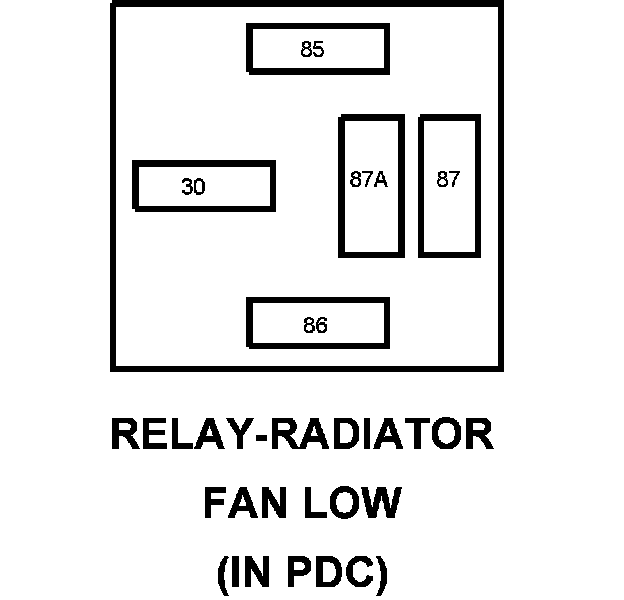

Relay-Radiator Fan Low

Component ID: 222
Component : RELAY-RADIATOR FAN LOW

Connector:
Name : RELAY-RADIATOR FAN LOW
Color :
# of pins : 0
Qualifier : (IN PDC)




30 FUSED B(+) INTERNAL
85 LOW SPEED RAD FAN RELAY CONTROL N201 20DB/LG
86 FUSED ASD RELAY OUTPUT K347 20BR/YL
86 FUSED IGNITION SWITCH OUTPUT (RUN-START) INTERNAL
87 LOW SPEED RAD FAN RELAY OUTPUT N23 12DB/DG
87A - -
