Installation

INSTALLATION

NOTE: Make sure that no foreign material or debris is present on the top of the dash panel in the engine compartment which could possibly block or restrict air flow through the fresh air inlet screen or cause rustling type noises when the blower motor is operated. Use a vacuum to remove any foreign material or debris as necessary.

NOTE: Failure to install the blower motor correctly could result in an air leak or the blower motor becoming completely disengaged from the HVAC housing.

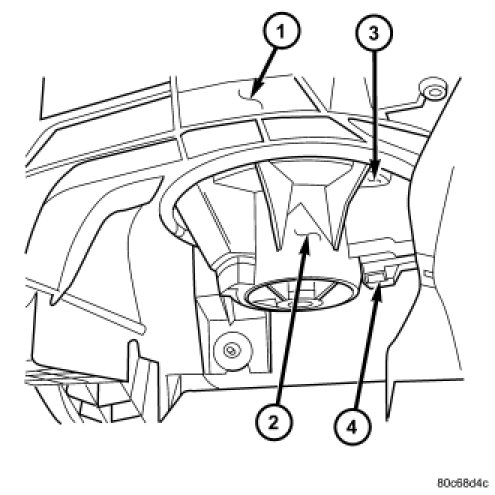

NOTE: LHD model shown. RHD model similar.

1. Align and install the blower motor (2) into the HVAC housing (1).

2. Rotate the blower motor until the locking tab (3) secures the blower motor to the HVAC housing.

3. Connect the wire harness lead to the blower motor connector (4).

4. Reconnect the negative battery cable.

5. Test the blower motor for proper installation by operating the blower motor at its fastest speed while checking around the outer edges of the blower motor and HVAC housing for air leaks. If any are found, remove and reinstall the blower motor.
