Installation

INSTALLATION

WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.

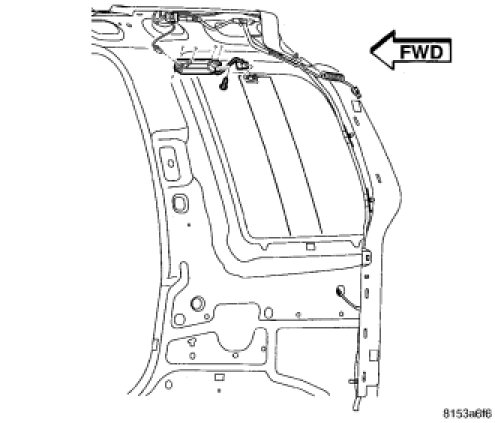

1. Plug coax into antenna module.

2. Position antenna module. Install and tighten mounting fasteners.

3. Connect antenna module lead to the integral antenna.

4. Connect battery power supply lead to antenna module.

5. Install headliner.

6. Connect battery negative cable.
