Installation

3.7L

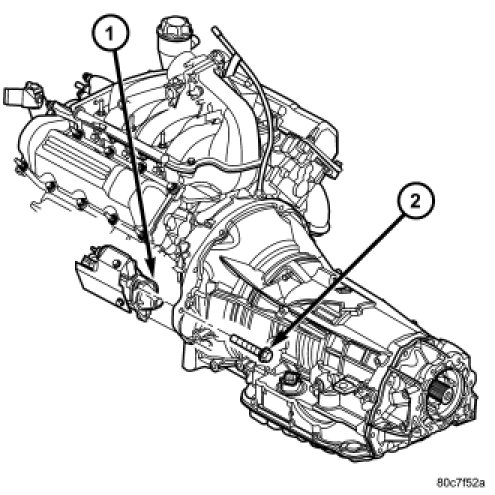

1. Position front of starter towards rear of vehicle with solenoid position rotated until it is located below starter. Install starter by passing it between exhaust pipe and transmission bellhousing.




2. Position starter into bellhousing and install two bolts (2) and tighten to 54 Nm (40 ft. lbs.).

3. Install battery cable and nut to stud on starter solenoid and tighten to 11 Nm (100 in. lbs.).

4. Install solenoid wire connector to solenoid terminal.

5. Position starter heat shield and install nut at front of starter.

6. Install 2 starter heat shield bolts at side of starter.

7. Install front propeller shaft.

8. Install 2 flange bolts securing left exhaust downpipe to crossover pipe.

9. Lower vehicle.

10. Connect negative battery cable.
