Removal

3.7L
1. Disconnect and isolate negative battery cable.

2. Raise and support vehicle.

3. Remove 2 flange bolts securing left exhaust downpipe to crossover pipe. Lower pipe slightly to allow front propeller shaft removal.

4. Remove front propeller shaft.

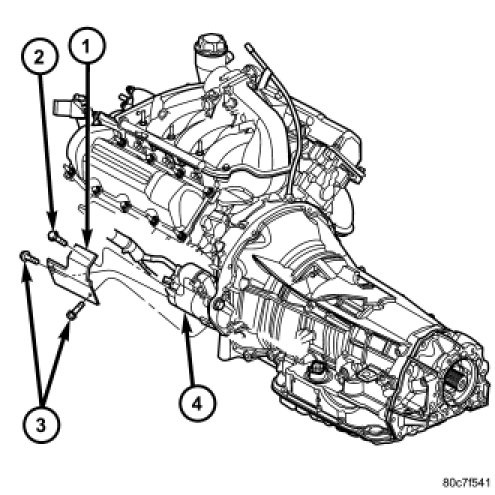

5. Remove two starter heat shield bolts (3) at side of starter.

6. Remove starter heat shield nut at front of starter.

7. Remove starter heat shield.

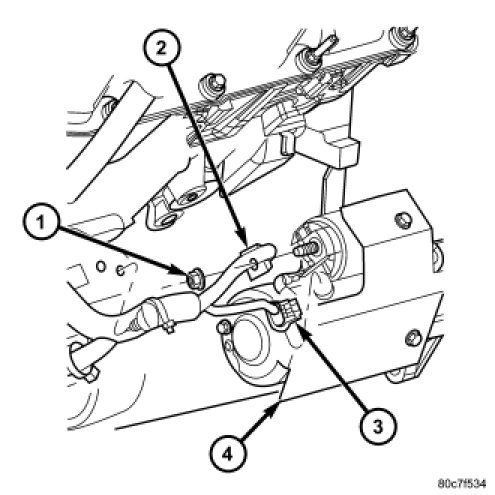

8. Remove solenoid wire connector (3) from solenoid terminal.

9. Remove battery cable eyelet (2) from stud on starter solenoid.




10. Remove two starter mounting bolts (2).

11. Position front of starter to face rear of vehicle. Rotate starter until solenoid position is located below starter.

12. Remove starter from vehicle by passing it between exhaust pipe and transmission bellhousing.
