Installation

INSTALLATION

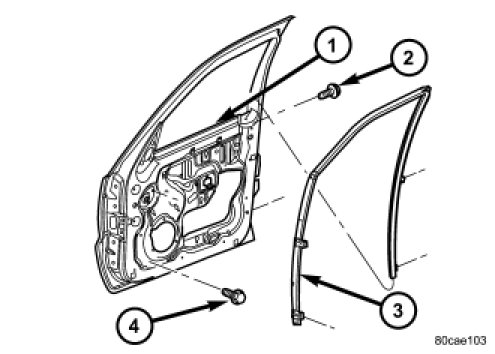

1. Install the run channel (3) through the window opening (1) and into the door frame.

2. Install the front (4), rear bolts (2) and tighten to 9 Nm (80 in. lbs.).




3. Install the door glass.
