Switch-A/C-Low Pressure

Component ID: 446
Component : SWITCH-A/C-LOW PRESSURE

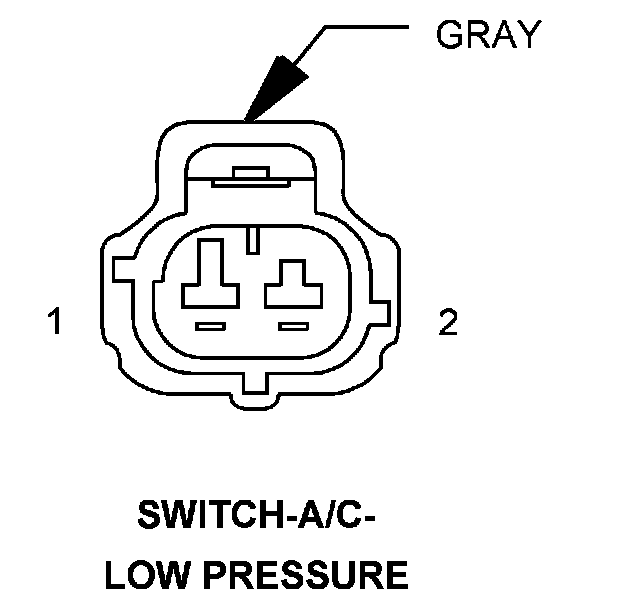

Connector:
Name : SWITCH-A/C-LOW PRESSURE
Color : GRAY
# of pins : 2




Pin Description Circuit
1 A/C SWITCH SENSE C20 20DB/YL
2 A/C ON/OFF CONTROL C221 20LB/OR
2 GROUND Z937 20BK
2 GROUND Z932 18BK

Component Location - 20

Fig. 20:

Component Location - 29

Fig. 29:
