Installation

INSTALLATION




1. Install transmission on engine.

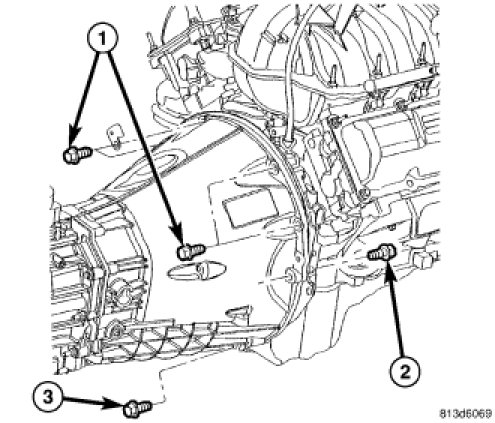

2. On 3.7L engine tighten bolts (1) to 41 Nm (30 ft. lbs.). Tighten bolts (2) to 67 Nm (50 ft. lbs.). Tighten bolts (3) to 54 Nm (40 ft. lbs.).




3. On 2.8L diesel engine tighten bolts (1) to 41 Nm (30 ft. lbs.). Tighten bolts (2) to 67 Nm (50 ft. lbs.). Tighten bolts (3) to 54 Nm (40 ft. lbs.).




4. Clean shift tower and mating surface. To prevent plugging the transmission vent, apply just a thin film of Mopar(R) Gasket Maker to shift tower mating surface.
5. Install shift tower (2) and tighten bolts (1) to 14 Nm (10 ft. lbs.).
6. Install transmission crossmember and tighten bolts to 47 Nm (35 ft. lbs.). Install transmission mount bolts and tighten to 47 Nm (35 ft. lbs.).




7. Install backup lamp (2) wiring connector (1).




8. Install clutch slave cylinder (2) and mounting nuts (1).
9. Install transfer case and shift linkage, if equipped.
10. Install transfer case wiring connector and vent hose.
11. Install propeller shaft/shafts with reference marks aligned.




12. Remove fill plug (1) and fill transmission to specifications.
