Removal

REMOVAL

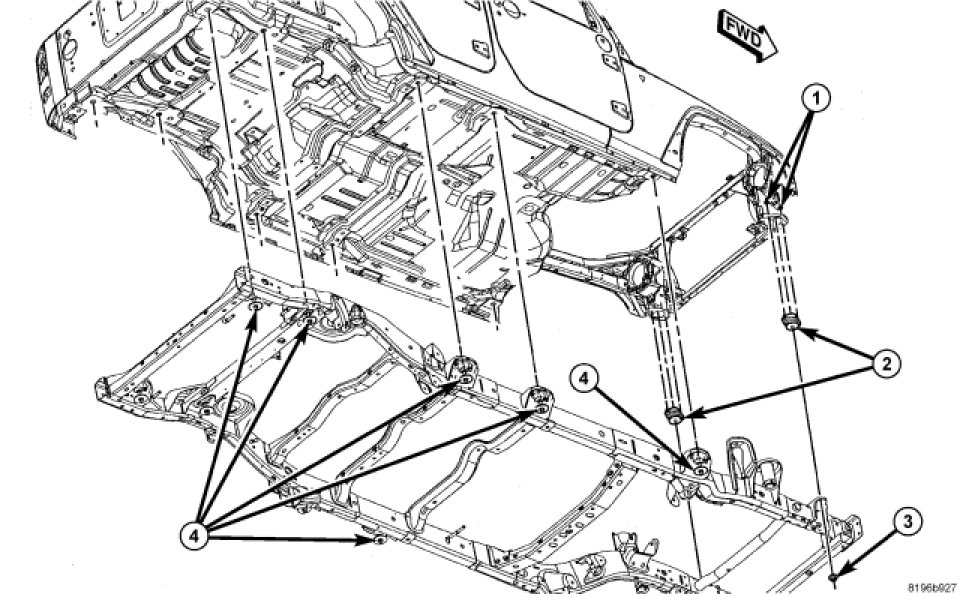

NOTE: Four door model shown in the illustration. Body isolators for two door models are similar.

1. If removing the front isolators (2) remove the grille, refer to Grille.

2. Loosen all body to frame mounting bolts (4) and nuts (3), (two door has 8 bolts and two nuts, four door has 10 bolts and two nuts).

3. Remove the mounting bolts (4) and isolator nuts (1) as necessary.

4. Using a floor jack and wooden block under the body sill, lift the body to gain access to the isolators and remove the isolators as necessary.
