C206

Component ID: 36
Component : C206

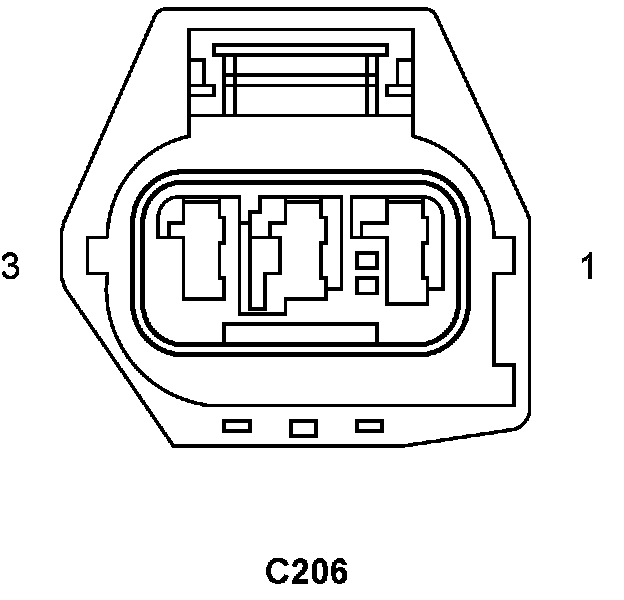

Connector:
Name : C206
Color :
# of pins : 3




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A417 22RD
2 LIN BUS D122 22WT/LG
3 GROUND Z910 22BK/WT

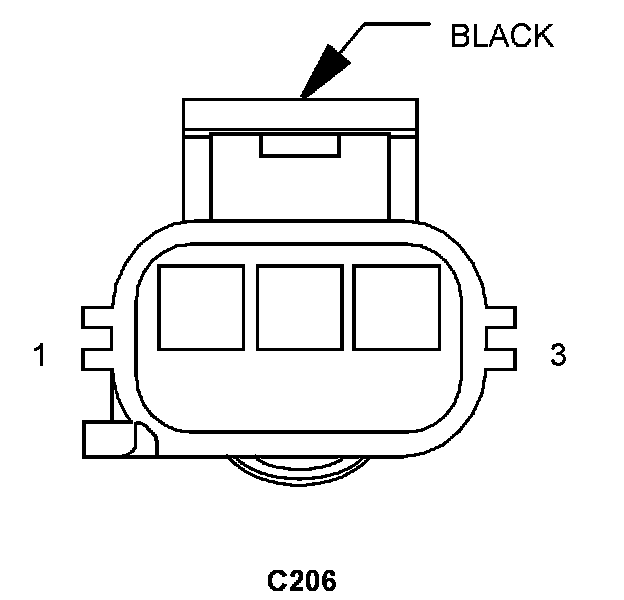

Connector:
Name : C206
Color : BLACK
# of pins : 3




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A417 22RD
2 LIN BUS D122 22WT/LG
3 GROUND Z910 22BK/WT
