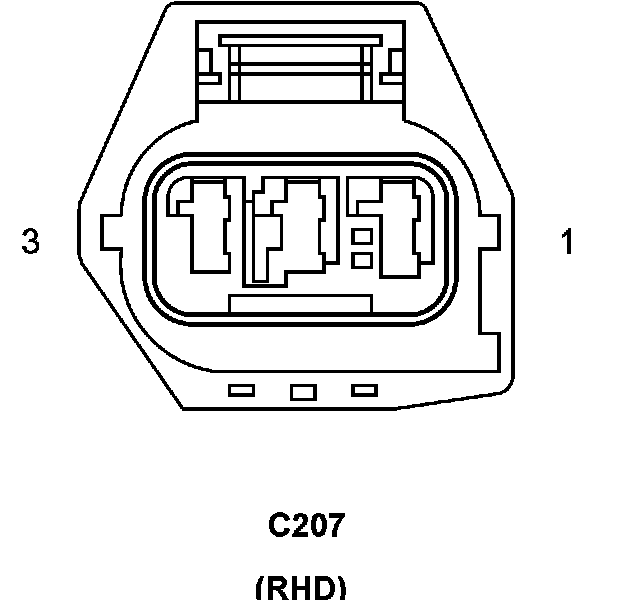

C207

Component ID: 37
Component : C207

Connector:
Name : C207
Color : BLACK
# of pins : 3
Qualifier : (RHD)




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A412 18RD
2 GROUND Z910 18BK/WT
2 LIN BUS D122 20WT/LG
3 LIN BUS D122 20WT/LG
3 GROUND Z910 18BK/WT


Connector:
Name : C207
Color :
# of pins : 3
Qualifier : (RHD)




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A412 18RD
2 LIN BUS D122 20WT/LG
3 GROUND Z910 18BK/WT
