INSTALLATION

CAUTION: Be certain to adjust the refrigerant oil level when servicing the A/C refrigerant system. Failure to properly adjust the refrigerant oil level will prevent the A/C system from operating as designed and can cause serious A/C compressor damage.

NOTE: When replacing multiple A/C system components, refer to the Refrigerant Oil Capacities chart to determine how much oil should be added to the refrigerant system.

NOTE: Replacement of the refrigerant line O-ring seals and gaskets is required anytime a refrigerant line is opened. Failure to replace the rubber O-ring seals and metal gaskets could result in a refrigerant system leak.





NOTE: 3.8L engine shown. 2.8L engine similar.

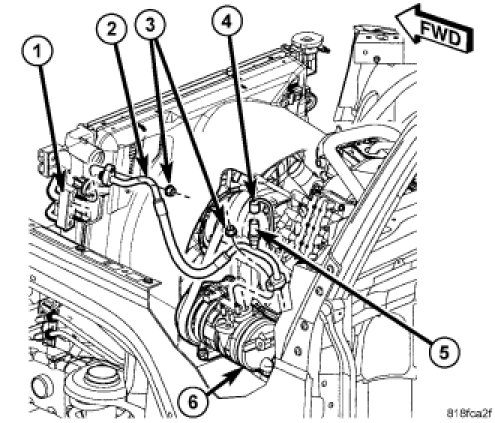

1. Position the A/C discharge line (2) into the engine compartment.

2. Remove the tape or plugs from the discharge line fittings and the condenser and compressor ports.

3. Lubricate new rubber O-ring seals with clean refrigerant oil and install them and new gaskets onto the discharge line fittings. Use only the specified O-rings as they are made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

4. Connect the A/C discharge line to the A/C condenser (1) and A/C compressor (6).

5. Install the nuts (3) that secure the A/C discharge line to the A/C condenser and the A/C compressor. Tighten the nuts to 23 Nm (17 ft. lbs.).

6. On 2.8L diesel engines, reconnect the air intake hose to the throttle body.

7. If removed, install the A/C pressure transducer (5) onto the A/C discharge line using a new O-ring seal. Tighten the A/C pressure transducer securely.

8. Connect the wire harness connector (4) to the A/C pressure transducer.

9. Reconnect the negative battery cable.

10. Evacuate the refrigerant system.

11. Adjust the refrigerant oil level.

12. Charge the refrigerant system.
