Firing Order

DESCRIPTION
The 3.8 Liter (231 cu. in.) engine is 60° V-6 engines with cast iron cylinder blocks and aluminum cylinder heads. The engine uses a single, block mounted camshaft, roller lifters with pushrods to actuate the valves and either cracked cap, or standard cap, forged connecting rods. The engine does not have provisions for a free wheeling valve train.

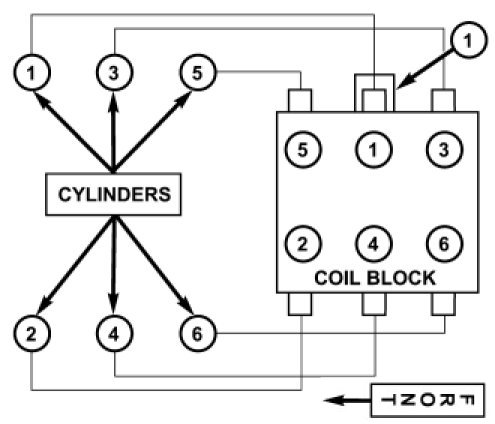

The firing order is 1-2-3-4-5-6. The left cylinder bank is numbered 2, 4, and 6. The right cylinder bank is numbered 1, 3, and 5.
