Starter Motor: Diagrams

Component ID: 342
Component : STARTER

Connector:
Name : STARTER
Color :
# of pins : 1




Pin Description Circuit
1 STARTER RELAY OUTPUT T750 12YL/GY


Connector:

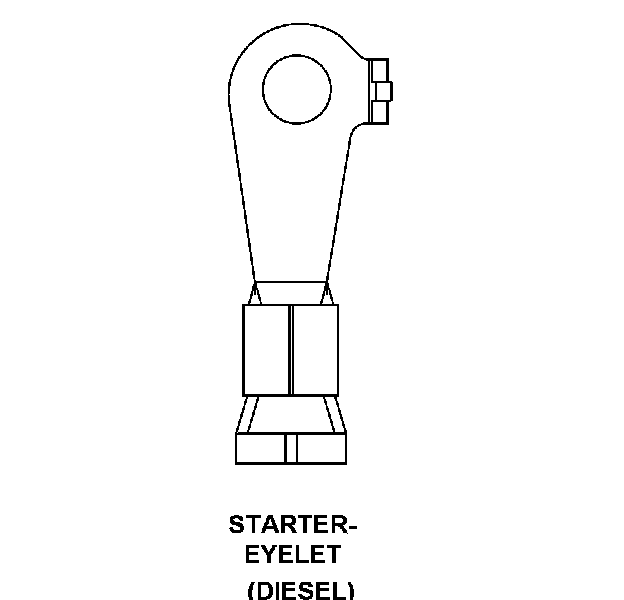

Name : STARTER-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 B(+) A0 2RD


Connector:
Name : STARTER-EYELET
Color :
# of pins : 1
Qualifier : (GAS)




Pin Description Circuit
1 B(+) A0 4RD
