Rear Axle - 198RBI
>>
Overhaul (Bearings - Differential Case)
>>
Removal
Removal
REMOVAL

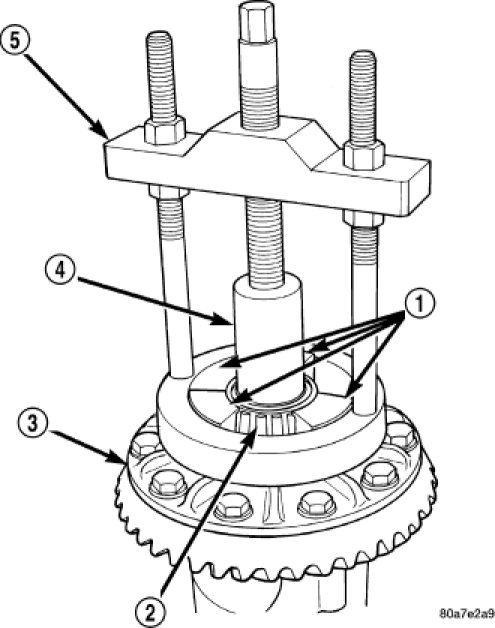

1.
Remove differential (3) from housing.
2.
Remove bearings (2) from differential case with Puller C-293-PA (5), Adapters C-293-39 (1) and Plug SP-3289 (4).
