Home
>>
Jeep
>>
2007
>>
Wrangler V6-3.8L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Flex Plate
>>
Service and Repair
>>
Removal
Removal
REMOVAL
1.
Remove the transmission.
2.
Remove
flex plate
attaching bolts.
3.

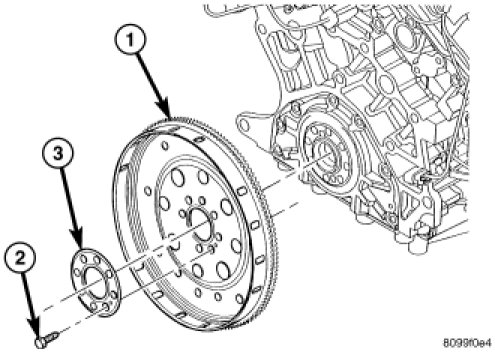

Remove the
flex plate
(1).
