Rear Distribution

REMOVAL

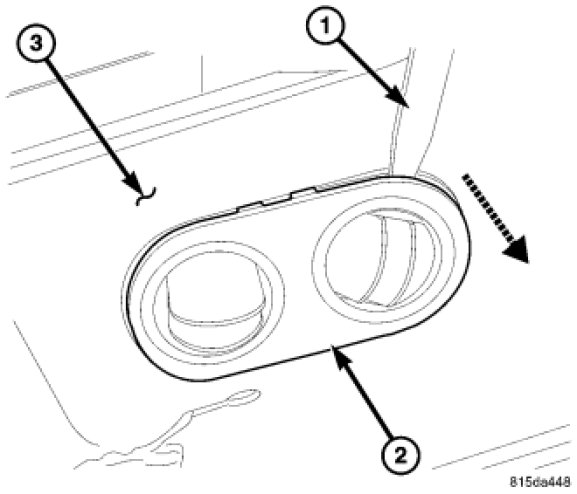

1. Using a trim stick or another suitable wide flat-blade tool (1), gently pry between the top of the upper rear air outlet bezel (2) and the quarter interior trim panel (3) to release the retainer clips that secure the top of the bezel to the trim panel.
2. Roll the top of the upper rear air outlet bezel downward to disengage the retainer clips that secure the bottom of the bezel to the trim panel and remove the air outlet bezels as necessary.

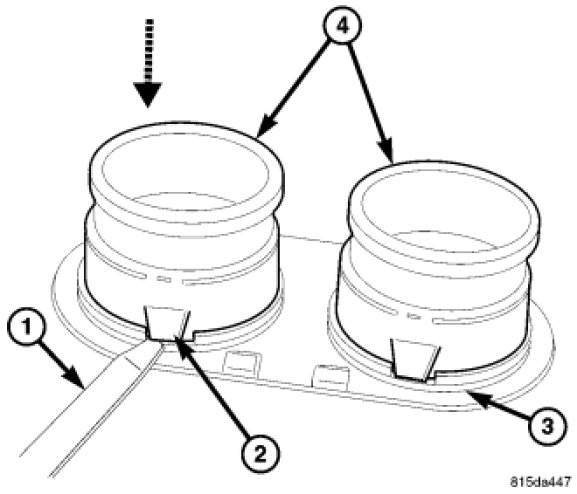

3. Using a trim stick or another suitable wide flat-blade tool (1), release the three retaining clips (2) that secure each upper rear air outlet (4) to the rear outlet bezel (3) and remove the air outlets as necessary.
