Leak Detector: Diagrams

Component ID: 565

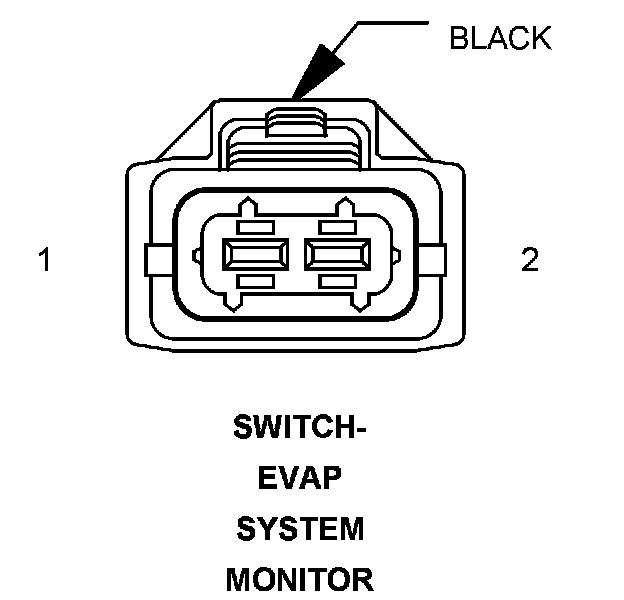

Component : SWITCH-EVAP SYSTEM MONITOR

Connector:
Name : SWITCH-EVAP SYSTEM MONITOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 Z912 18BK GROUND
2 K107 20VT/WT ESM SIGNAL

Component Location - 71
